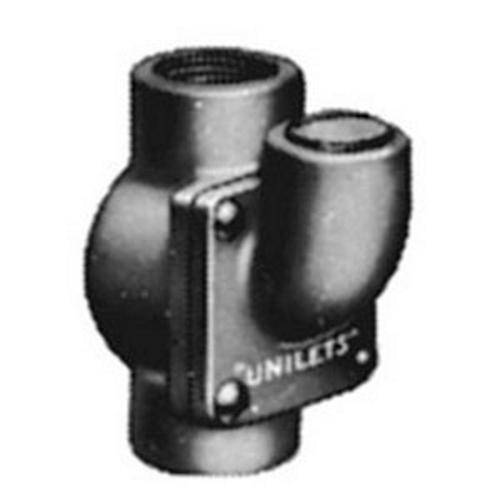

Appleton® Unilets™ ESUF50 ESU Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metal Conduit, Malleable Iron, Tri-Coated

Short Description

These sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. The ESU Series provides a pouring spout that rotates 90 deg for sealing vertical or horizontal conduit.

Appleton® Unilets™ Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: ESU, 1/2 in, For Use With: IMC/Threaded Rigid Metal Conduit, Surface Mount, Malleable Iron, Tri-Coated, 3 in L x 2.94 in W
MFG #: ESUF50

EECO #: APESUF50

Brand: Appleton
UPC #: 781381306355
Attributes
Features
Documents
Product Information
Attributes
Finish
Tri-Coated
UNSPSC
39121311
Material
Malleable Iron
Mounting Type
Surface
Size
1/2
Type
Dust-Ignitionproof Explosionproof
Series
ESU
Dimensions
3 in L x 2.94 in W
Suitable For Use With
IMC/Threaded Rigid Metal Conduit
Features
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • For sealing vertical or horizontal conduit
  • Pouring spout rotates 90 deg
  • Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming
  • 1-1/4 in turning radius
  • Triple coat of zinc electroplate, chromate and epoxy powder coated finish
  • Prevent passage of gases, vapors or flames from one portion of conduit system to another
  • Restrict any explosion to the sealed off enclosure
  • Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
  • Seal must be located within 18 in of either enclosure
