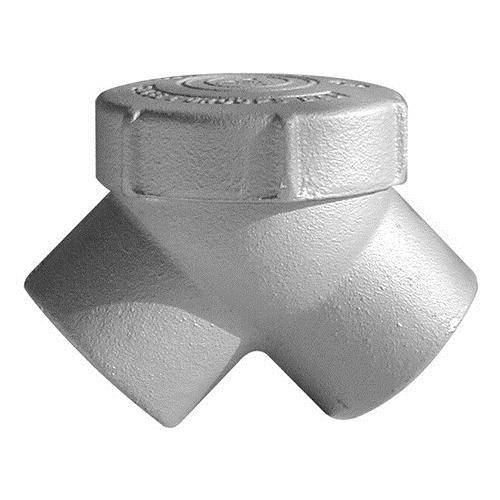

Appleton® UNILETS® ELBY100A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 1 in Trade, 90 deg, Aluminum, Epoxy Powder Coated
Share Share Print Print
Appleton

Appleton® UNILETS® ELBY100A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 1 in Trade, 90 deg, Aluminum, Epoxy Powder Coated

Short Description

Appleton® Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2 in through 4 in, with designs that facilitate pulling of even heavy, difficult to bend conductors.

Appleton® UNILETS® Conduit Elbow, Dust-Ignitionproof Explosionproof Capped Raintight, Series: ELBY, 1 in, 90 deg, For Use With: IMC/Threaded Rigid Metallic Conduit, Aluminum, Epoxy Powder Coated, 3.19 in L
MFG #: ELBY100A

EECO #: APELBY100A

Brand: Appleton
UPC #: 781381621984
Attributes
Features
Documents
Product Information
Attributes
Finish
Epoxy Powder Coated
UNSPSC
39131717
Material
Aluminum
Trade Size
1
Type
Dust-Ignitionproof Explosionproof Capped Raintight
Angle
90
Series
ELBY
Warranty
Limited
Dimensions
3.19 in L
Suitable For Use With
IMC/Threaded Rigid Metallic Conduit
Features
  • Serves as pulling fitting
  • Makes 90 deg bend in conduit runs
  • Built in rollers to facilitate cable pulling
  • Permits easy access to pulling conductors
  • Screw on cover for ease of installation and removal
  • Cover opens on an angle permitting conductors to be pulled straight through either hub
  • Can make 90 deg turns in conduit where a compact turn is desired
  • Female tapered threaded hubs (NPT) for rigid conduit and IMC
Appleton_CLB1010_MT_Warranty
Appleton_ELBY75A_Specification_Sheet
