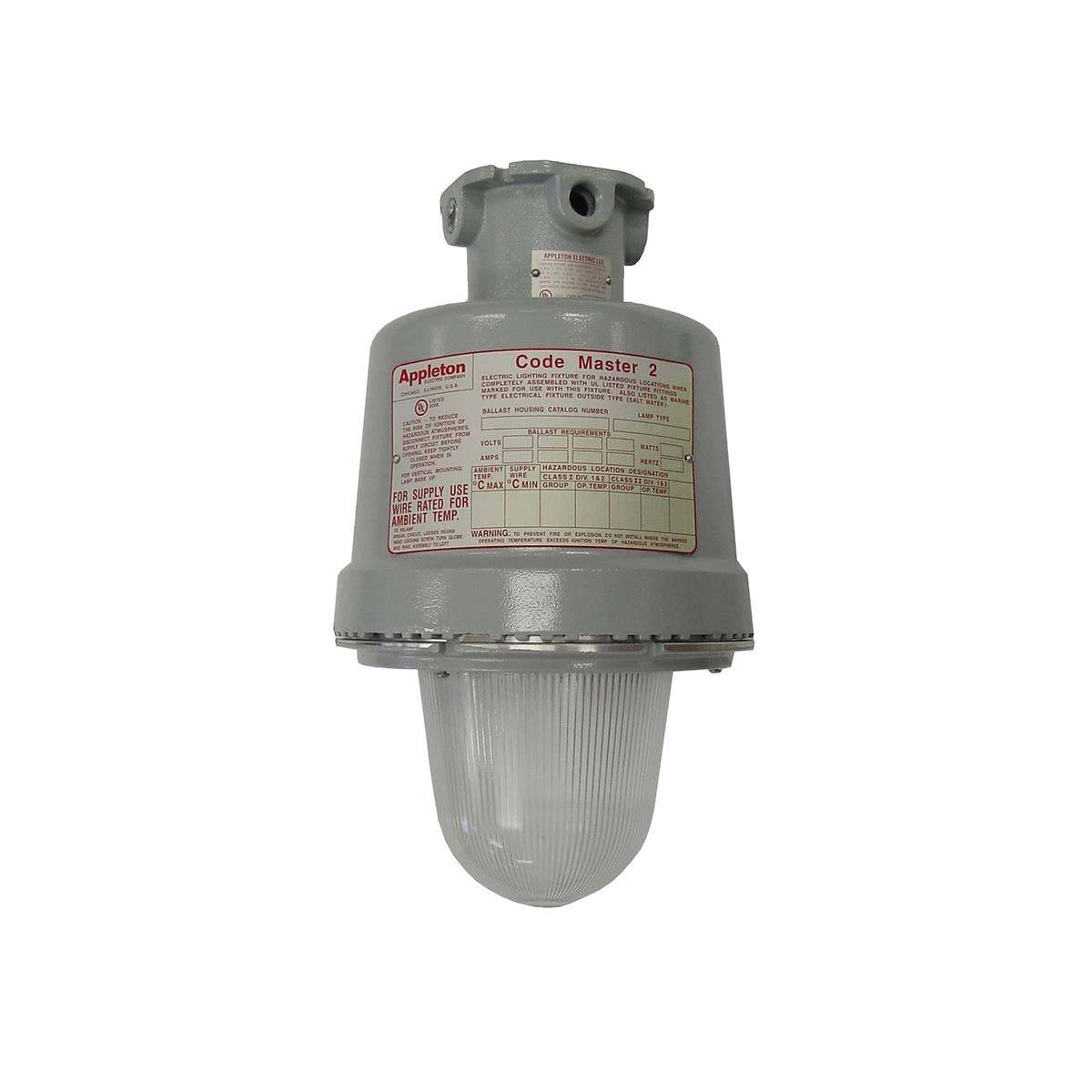

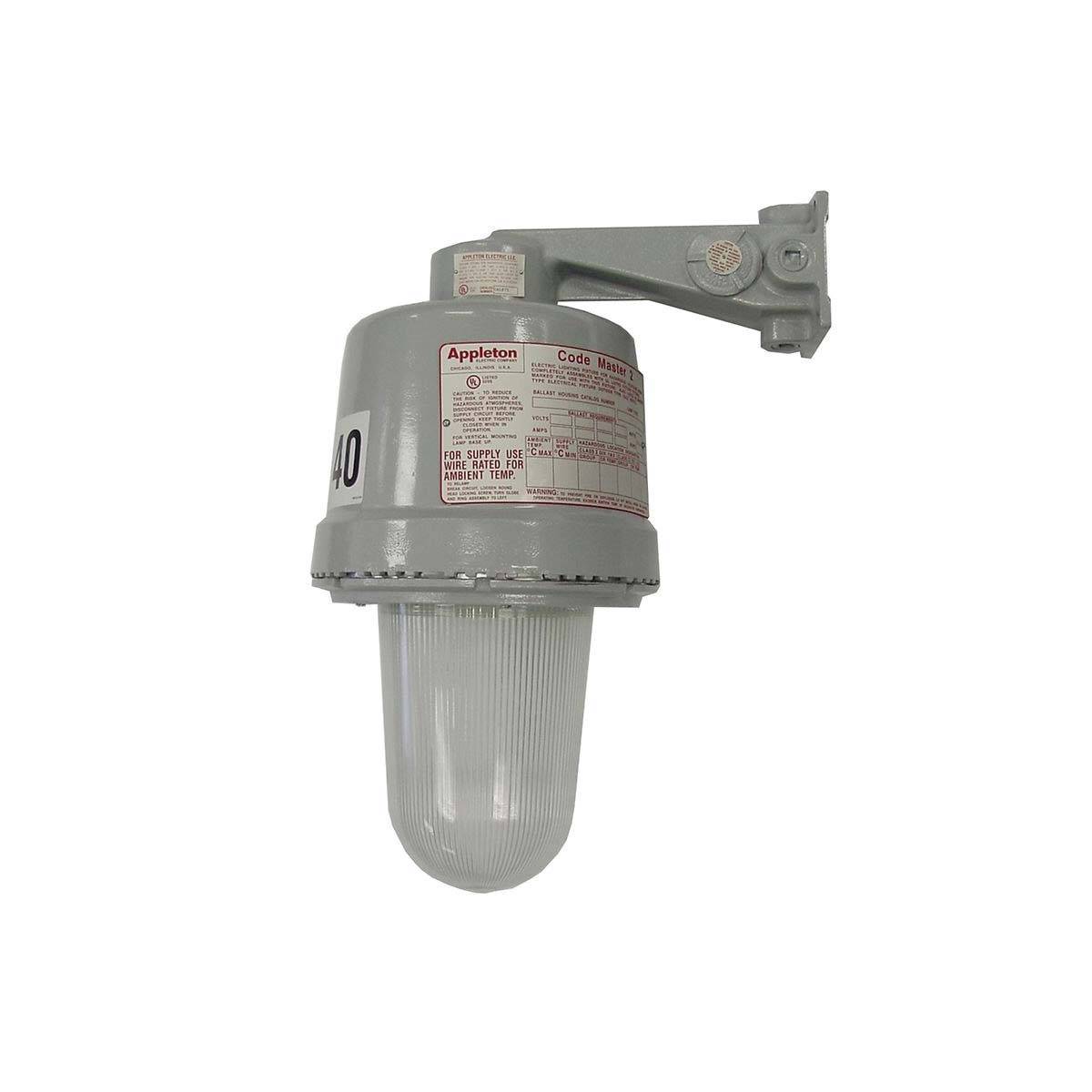

Appleton® Code Master™ 2 CLB1075G-MTL CL Series Factory Sealed Explosionproof HID Luminaire With Guard, (1) High Pressure Sodium Lamp, 100 W Fixture, 120/277 VAC, Epoxy Powder Coated Housing

Short Description

The explosionproof code Master 2 HID fixture features our proprietary technology for maximum safety and reliability in class I and II locations. Internal components are uniquely arranged for the greatest heat dissipation, which enables extended lamp life and Industry-leading "T" ratings. Appleton's exclusive wireless mounting hood enables power on fixture installation and removal in hazardous locations. They are suitable for use in a wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present, areas where access to relamp is difficult, reliability is essential and environment is costly to maintain.

Appleton® Code Master™ 2 Explosionproof HID Luminaire, Factory Sealed, Series: CL Series, 120/277 VAC, 100 W Fixture, 1.15/0.67/0.58/0.5 A, High Pressure Sodium Lamp, 100 W Lamp, Mogul Lamp Base, 1 Lamps, HX-HPF Ballast, Heat and Impact Resistant Glass Globe Lens, 9500 Lumens, Pendant Mount, Aluminum Housing, Epoxy Powder Coated Housing, 21-1/2 in L x 12 in W
MFG #: CLB1075G-MTL

EECO #: APCLB1075GMTL

Brand: Appleton
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111600
Application
For chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners, in refineries and in other areas where ignitable vapors, dust, moisture and corrosive elements may be present
Mounting Type
Pendant
Voltage Rating
120/277
Housing Material
Aluminum
Lamp Wattage
100
Housing Finish
Epoxy Powder Coated
Lamp Base Type
Mogul
Features
  • Fixtures operate safely in high ambient temperatures
  • Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
  • Wireless design, threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood
  • Connection block is easily wired - loosen two screws, make wire connections and re-position connection block
  • Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
  • ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads, the threads do not stick or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal
  • All threaded joints are flame-tight
  • Integrally ballasted HID lighting fixtures, separate ballasts not required
  • Strategic location of lamp socket, in combination with interior prism design of the glass globe, provides optimum light distribution and control
  • Superior corrosion resistance with epoxy powder coat finish
  • Porcelain socket with nickel plated phosphor bronze screw shell, assures long trouble-free operation in high ambient areas
  • Fiberglass reinforced polyester reflectors, in standard dome, deep dome or 30 deg angle, are ideal in installations where luminaire is subject to exceptionally severe corrosive atmospheres, the high bay aluminum reflector is indicated in installations where mounting height from work plane ranges from 20 feet/6 meters and higher
  • HPS is excellent where long lamp life is required and provides high lumens per watt and is less expensive to operate
  • Ballasts operate at low temperatures of -40 deg C
  • NEC class I, division 1 and 2, groups C, D class II, division 1 and 2, groups E, F, G class III, CEC class I, division 1 and 2, groups B, C, D class I, zone 1 and 2; IIB, IIA class II, division 1, groups E, F, G class II, division 2, groups F, G class III
  • Die-cast copperfree (4/10 of 1% maximum) aluminum pendant mounting hoods
  • (4) hubs, (3) close-up plugs
  • 3/4 in threaded hub
  • 60 to 85 deg C supply wire, 40 to 65 deg C ambient temperature
  • 50 W through 150 W high pressure sodium ballasts are high reactance, high power factor type
