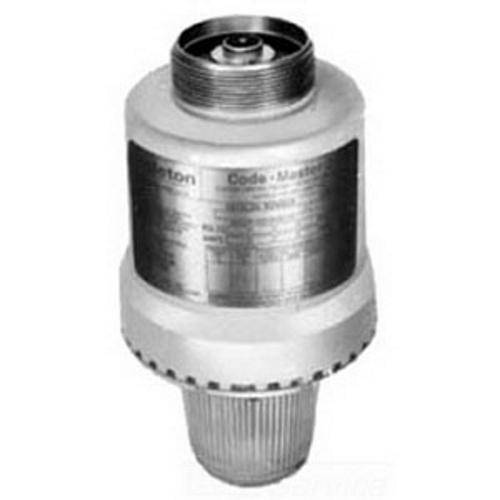

Appleton® Code Master™ Jr. CJB150L-MT Dust-Ignitionproof Factory Sealed Explosionproof HID Luminaire, (1) High Pressure Sodium Lamp, 120/208/240/277 VAC, Epoxy Powder Coated Housing
Share Share Print Print
Appleton

Appleton® Code Master™ Jr. CJB150L-MT Dust-Ignitionproof Factory Sealed Explosionproof HID Luminaire, (1) High Pressure Sodium Lamp, 120/208/240/277 VAC, Epoxy Powder Coated Housing

Short Description

The explosionproof Code Master™ Jr. HID factory sealed, integrally ballasted HID luminaires are available in a wide range of lamps and wattages. They are designed for use in areas where ignitable vapors, dust, moisture and corrosive elements may be present and are suitable for outdoor saltwater locations and other wet locations.

Appleton® Code Master™ Jr. Explosionproof HID Luminaire, Dust-Ignitionproof Factory Sealed, Series: CJ Series, 120/208/240/277 VAC, 2/1.16/1/1 A Starting, 1.66/0.96/0.83/0.83 A Operating, High Pressure Sodium Lamp, 150 W Lamp, Medium Lamp Base, 1 Lamps, Integral/HX-HPF Ballast, Glass Lens, 16000 Lumens, NEMA 4X Enclosure, Copper-Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish
MFG #: CJB150L-MT

EECO #: APCJB150LMT

Brand: Appleton
UPC #: 781381553896
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111524
Lamp Type
High Pressure Sodium
Application
For chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners in refineries and in other areas where ignitable vapors, dust, moisture and corrosive elements may be present, outdoor saltwater locations and for other wet locations, for use with threaded metal conduit
Enclosure Type
NEMA 4X
Voltage Rating
120/208/240/277
Number of Lamps
1
Housing Material
Copper-Free Aluminum
Type
Dust-Ignitionproof Factory Sealed
Series
CJ Series
Warranty
Limited
Lens Type
Glass
Ballast Type
Integral/HX-HPF
Lamp Wattage
150
Housing Finish
Epoxy Powder Coated
Lamp Base Type
Medium
Amperage Rating
2/1.16/1/1 A Starting, 1.66/0.96/0.83/0.83 A Operating
Features
  • Fixtures operate safely in high ambient temperatures
  • Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
  • Patented wireless design, threading of fixture unit onto mounting hood makes electrical connection (the only wiring required is attaching two wires to connection block in mounting hood)
  • Connection block is easily wired loosen two screws, make wire connections and re-position connection block
  • Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
  • ACME double lead threads speed installation and fixture removal from mounting hood - only half as many turns are required as for single lead threads
  • The threads do not stick or gall, eliminating problems often encountered with single-lead threads during fixture unit removal
  • All threaded joints are flame-tight
  • Heat and impact-resistant globes have smooth dust-resistant exterior
  • Superior corrosion-resistance, with epoxy powder-coated finish
  • SHOCKS™ - Absorbing medium base socket mounts prolong lamp life and porcelain socket with nickel plated phosphor bronze screw shell
  • Strategic location of lamp socket in combination with interior prism design of the glass globe, provides optimum light distribution and control
  • Assures long trouble free operation in high ambient areas
  • 2 A at 120 VAC, 1.16 A at 208 VAC, 1 A at 240 VAC, 1 A at 277 VAC starting, 1.66 A at 120 VAC, 0.96 A at 208 VAC, 0.83 A at 240 VAC, 0.83 A at 277 VAC operating
