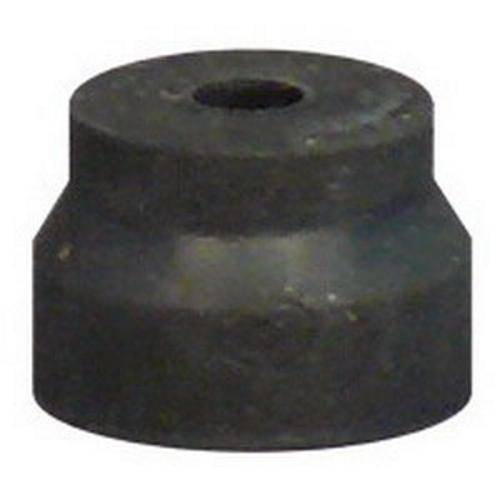

Appleton® CGG421 CG Series Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1-1/8 in Cable Openings, Rubber, Natural

Short Description

Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

Appleton® Straight Cord Connector, Strain Relief, Series: CG Series, 1-1/4 in, Cable Openings: 1 to 1-1/8 in, Threaded Hub, Rubber, Natural
MFG #: CGG421

EECO #: APCGG421

Brand: Appleton
UPC #: 781381396370
Attributes
Features
Documents
Product Information
Attributes
Finish
Natural
UNSPSC
39121431
Material
Rubber
Trade Size
1-1/4
Application
For 1-1/4 in hub straight CG-100125 and 90 deg CG90-100125 connectors
Connection Type
Threaded Hub
Type
Strain Relief
Series
CG Series
Features
  • Color code identifies the catalog number and minimum/maximum cable diameter
  • Neoprene sealing grommet firmly but safely grips cable jacket to provide strain relief while protecting internal wiring connections against external tension
  • Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
  • Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
  • For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
  • Silicone free
