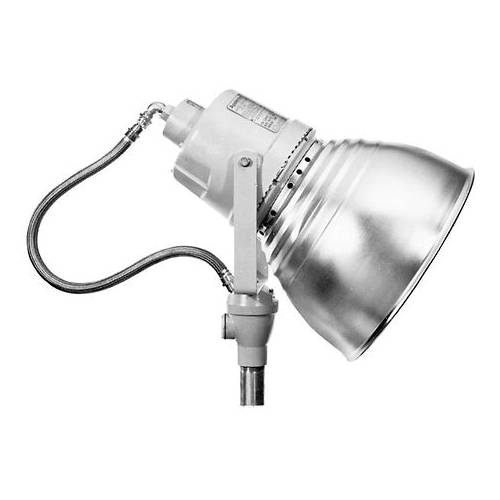

Appleton® CFP400GMT CodeMaster™ 2 Explosionproof Factory Sealed HID Floodlight Fixture With Trunnion 3/4 in Hub, Guard, Pulse Start Metal Halide Lamp, 120/208/240/277 VAC, Epoxy-Clad Housing
Share Share Print Print
Appleton

Appleton® CFP400GMT CodeMaster™ 2 Explosionproof Factory Sealed HID Floodlight Fixture With Trunnion 3/4 in Hub, Guard, Pulse Start Metal Halide Lamp, 120/208/240/277 VAC, Epoxy-Clad Housing

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Code Master™ 2 HID factory sealed floodlights are integrally ballasted and designed for use in areas where ignitable vapors, dust, moisture and corrosive elements may be present. They are suitable for outdoor saltwater locations and other wet locations. They are ideal in Class I, Division 1 and 2 installations in refineries, pipeline transportation facilities, drilling rigs, production facilities and land or marine platforms.

Appleton® Floodlight Fixture, Explosionproof Factory Sealed HID, Series: CodeMaster™ 2, 120/208/240/277 VAC, Pulse Start Metal Halide Lamp, 400 W Lamp, Mogul Lamp Base, Integral Ballast, 50000 Lumens, NEMA 3R/4X Enclosure, Copper-Free Aluminum Housing Material, Epoxy-Clad Housing Finish, 36.44 in L Dimensions
MFG #: CFP400GMT

EECO #: APCFP400GMT

Brand: Appleton
UPC #: 781381179515
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111524
Lamp Type
Pulse Start Metal Halide
Application
For marine type electric fixtures outside type, Class I, Division 1 and 2 installations in refineries, in pipeline transportation facilities, at drilling rigs and in production facilities on land and marine platforms and Virtually all enclosed areas at drilling operations or refineries where ventilation is inadequate, or where a cellar or below grade sump exists, are Class I, Division 1
Enclosure Type
NEMA 3R/4X
Voltage Rating
120/208/240/277
Housing Material
Copper-Free Aluminum
Type
Explosionproof Factory Sealed HID
Series
CodeMaster™ 2
Dimensions
36.44 in L
Ballast Type
Integral
Lamp Wattage
400
Housing Finish
Epoxy-Clad
Lamp Base Type
Mogul
Features
  • Fixtures operate safely in high ambient temperatures
  • Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation
  • All threaded joints are flame-tight
  • Five threads are always fully engaged in an explosionproof manner
  • Factory sealed, external seals not required
  • Strategic location of lamp socket, in combination with the interior prism design of the glass globe, provides optimum light distribution and control
  • Heat and impact-resistant globes have smooth dust-resistant exterior
  • Superior corrosion resistance, with epoxy powder coat finish
