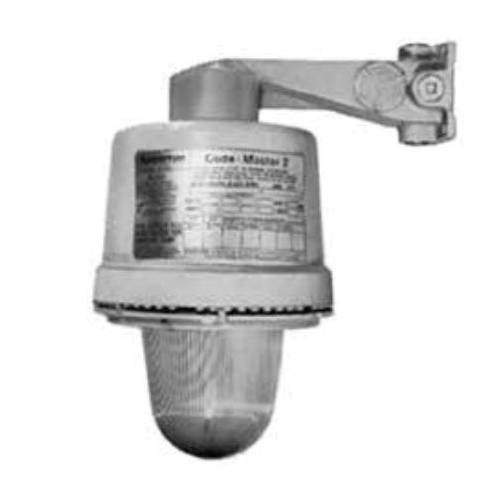

Appleton® Code Master™ 2 CFBS527527L Emergency Factory Sealed Explosionproof Fluorescent Luminaire With Globe, PL-T CFL Lamp, 277 VAC, Epoxy Powder Coated Housing
Share Share Print Print
Appleton

Appleton® Code Master™ 2 CFBS527527L Emergency Factory Sealed Explosionproof Fluorescent Luminaire With Globe, PL-T CFL Lamp, 277 VAC, Epoxy Powder Coated Housing

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

During power failures, these emergency luminaires provide instant on lighting to permit safe egress. They are factory sealed and designed for use in classified hazardous areas as well as wet and corrosive environments.

Appleton® Code Master™ 2 Explosionproof Fluorescent Luminaire, Dust-Ignitionproof Factory Sealed, Series: Emergency, 277 VAC, PL-T CFL Lamp, 52 W Lamp, 10000 hr Average Life, Electronic Ballast, Glass Lens, 1800 Lumens, NEMA 4X Enclosure, Bracket Mounting, Copper Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 24.61 in H x 17.5 in W Dimensions
MFG #: CFBS527527L

EECO #: APCFBS527527L

Brand: Appleton
UPC #: 781381106863
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111501
Lamp Type
PL-T CFL
Application
For chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners, in refineries and in other process areas where ignitable vapors, dust, moisture and corrosive elements may be present, for use in wet locations, for use with threaded metal conduit
Mounting Type
Bracket
Enclosure Type
NEMA 4X
Voltage Rating
277
Housing Material
Copper-Free Aluminum
Type
Dust-Ignitionproof Factory Sealed
Series
Emergency
Includes
Lamps
Warranty
Limited
Lens Type
Glass
Dimensions
24.61 in H x 17.5 in W
Ballast Type
Electronic
Lamp Wattage
52
Housing Finish
Epoxy Powder Coated
Features
  • Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
  • Wireless design, threading fixture unit onto mounting hood makes electrical connection (the only wiring required is attaching two wires to connection block in mounting hood)
  • Safe, easy servicing or replacement without disconnecting any wiring
  • ACME double lead threads do not stick or gall and require only half as many turns as single lead threads when installing or removing fixture from mounting hood
  • All threaded joints are flame-tight
  • Fluorescent light source 10000 hr lamp life reduces energy and relamping costs compared to incandescent
  • Position of lamp sockets in combination with the interior prism design of the glass globe provides optimum light distribution and control
  • Superior corrosion resistance
  • High bay aluminum reflector recommended for mounting heights of 20 to 30 ft/6 to 9 m from work plane
  • Long life, high temperature, nickel-cadmium (Ni-Cad) battery pack
  • Red indicator light is provided with each battery pack to indicate when the battery is charging
