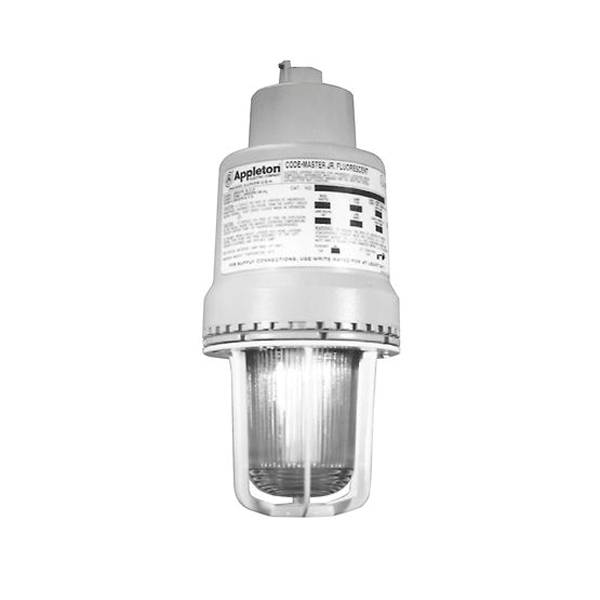

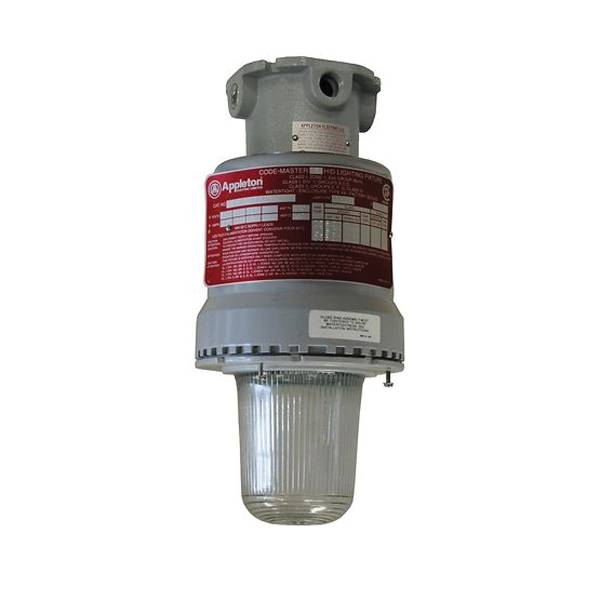

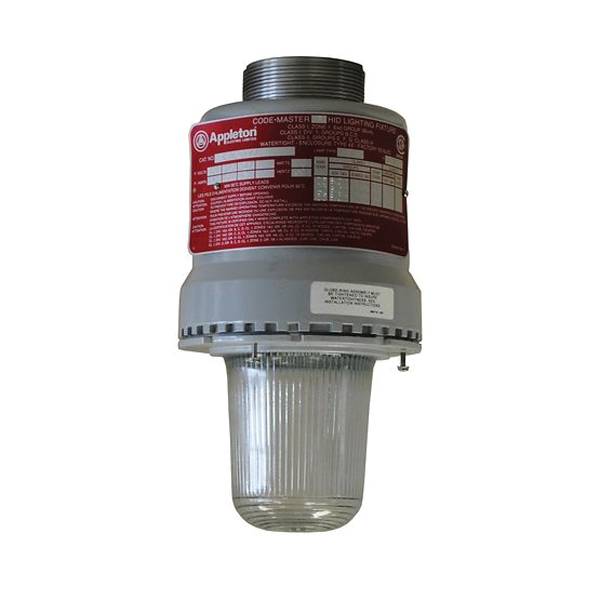

Appleton® Code.Master™ CFB150LBAC Luminaire

Name: Appleton® Code.Master™ CFB150LBAC Luminaire
Brand: Appleton
SKU: APCFB150LBAC
Availability: InStock

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.

Short Description

The explosionproof Code Master™ Jr HID factory sealed, integrally ballasted HID luminaires are available in a wide range of lamps and wattages. They are designed for use in areas where ignitable vapors, dust, moisture and corrosive elements may be present, and are suitable for outdoor saltwater locations and other wet locations.

Appleton® Code.Master™ Luminaire, 175/250 W Lamp

MFG #: CFB150LBAC

EECO #: APCFB150LBAC APCFB150LBAC

Brand: Appleton

UPC #: 781381965026

Discontinued

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39111501

Application

For use in chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners, in refineries, and in other areas where ignitable vapors, dust, moisture and corrosive elements may be present, suitable for outdoor saltwater locations and other wet locations

Warranty

1 Year Limited

Lamp Wattage

175/250

Features

HID factory sealed luminaire
Fixtures operate safely in high ambient temperatures
Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation
Patented wireless design, threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood
Connection block is easily wired loosen two screws make wire connections and re-position connection block
Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand-by unit
ACME double-lead threads speed installation and fixture removal from mounting hood - only half as many turns are required as for single-lead threads, the threads do not stick or gall, eliminating problems often encountered with single-lead threads during fixture unit removal
All threaded joints are flame-tight
Integrally ballasted HID lighting fixtures, separate ballasts not required
Strategic location of lamp socket in combination with the interior prism design of the glass globe provides optimum light distribution and control
Heat and impact-resistant globes have smooth dust-resistant exterior
Superior corrosion resistance, with epoxy powder coat finish
Shock-absorbing medium-base socket mounts prolong lamp life
Porcelain socket with nickel-plated phosphor bronze screw shell, assures long trouble-free operation in high ambient areas
Fiberglass-reinforced polyester reflectors, in standard dome or 30 deg angle styles, are ideal in installations where luminaire is subject to exceptionally severe corrosive atmospheres
Constructional feature explosionproof and dust-ignitionproof
