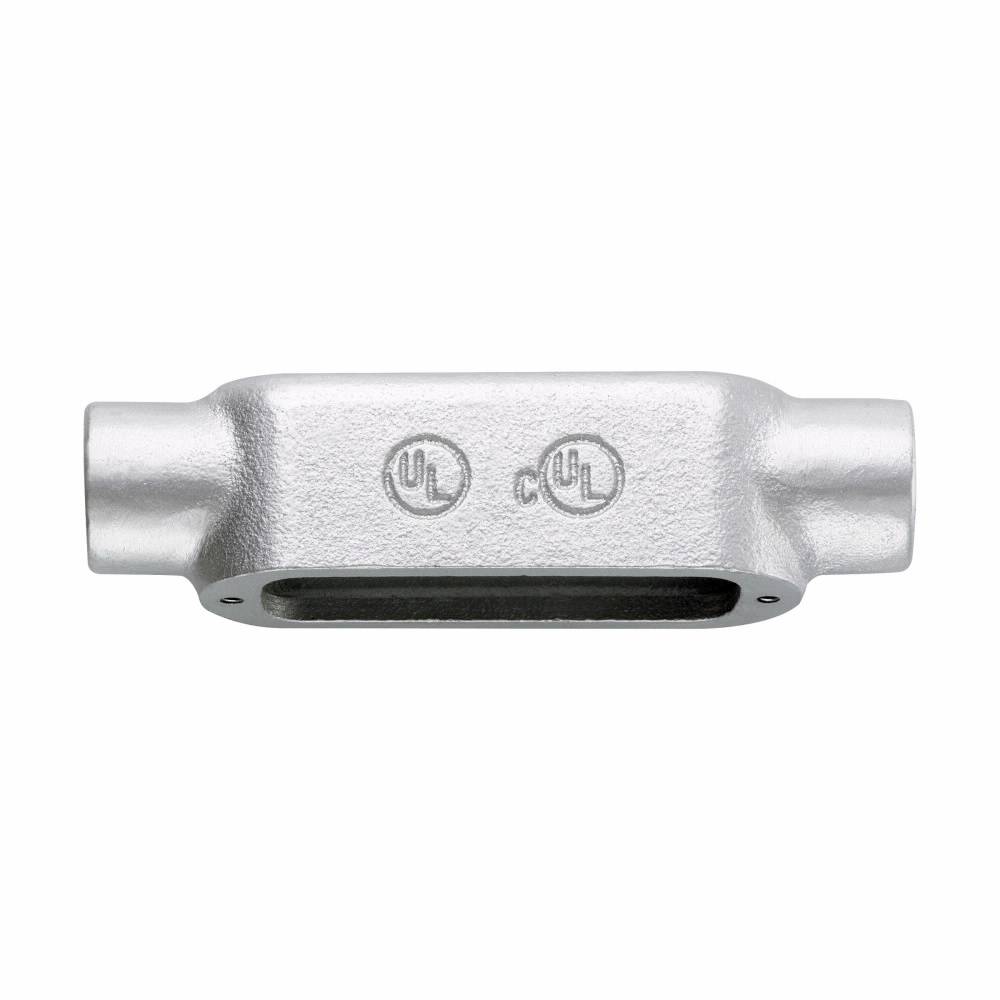

Crouse-Hinds Condulet® C300M Type-C Conduit Outlet Body, 3 in Hub, 5 Form, 181 cu-in Capacity, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Form 5 malleable iron conduit bodies, covers and gaskets from Eaton Crouse-Hinds Division are used in conduit systems to act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors, make 90 deg bends in conduit runs and provide access to conductors for maintenance and future system changes. Form 5 conduit bodies are manufactured in trade sizes 1/2 to 4 in and are interchangeable with Appleton Form 35 conduit bodies. They are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.

Crouse-Hinds Condulet® Conduit Outlet Body, Type-C, 3 in Hub, 2 Hubs, 181 cu-in Capacity, 5 Form, Thread Connection, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted, 15.12 in L x 4.31 in W x 4.75 in H Dimensions

MFG #: C300M

EECO #: APC300M

Brand: Crouse-Hinds
UPC #: 782274756400
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Finish
Electro-Galvanized/Aluminum Acrylic Painted
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL 514A/B, CSA C22.2, NEC
Hub Size
3
Material
Malleable Iron
Form Type
Form 35
Application
Commercial, Institutional Buildings, Structures Commercial and Other Applications
Hub Location
Straight
Installation
Threaded
Access Opening
Straight Side
Number of Hubs
2
Connection Type
Thread
Enclosure
NEMA 4
Size
15.13 Inch Length x4.31 Inch Width x 4.63 Inch Height
Style
C
Capacity
181
Includes
Built-in Rollers
Warranty
Limited
Cover Type
Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Cast Malleable Iron/Zinc Electroplate Steel/Aluminum
Dimensions
15.12 in L x 4.31 in W x 4.75 in H
Features
  • Interchangeable with Appleton form 35 conduit bodies
  • Built-in rollers on 1-1/4 to 4 in C and lb bodies to facilitate wire pulling
  • Smooth and rounded integral bushing for protection of wire insulation
  • Solid neoprene gaskets may be converted to open type by pulling out perforated center section
  • Stainless steel cover screw
  • Domed sheet steel covers provide additional cubic capacity
