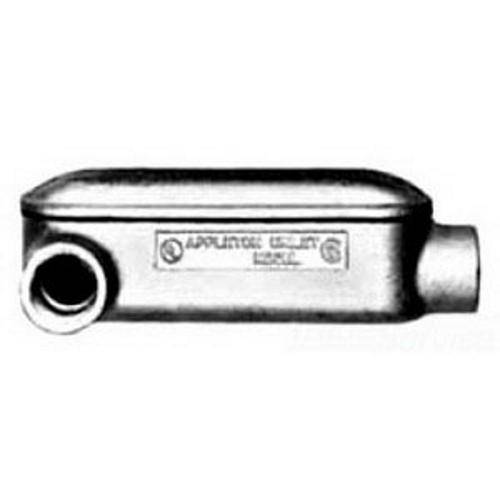

Appleton® Unilet® BLR150-M Type LR Conduit Body, 1-1/2 in Hub, 93 cu-in, Malleable Iron, Tri-Coated
Share Share Print Print
Appleton

Appleton® Unilet® BLR150-M Type LR Conduit Body, 1-1/2 in Hub, 93 cu-in, Malleable Iron, Tri-Coated

Short Description

Enhance your electrical installations with the Appleton® Unilet® BLR150-M Type LR Conduit Body. Crafted from durable malleable iron and featuring a tri-coated finish, this conduit body ensures superior protection and longevity. With a generous 93 cu-in capacity and a 1-1/2 in hub, it's designed for seamless integration into your conduit systems.Enhanced by AI

Appleton® Unilet® Conduit Body, Type LR, 1-1/2 in Hub, 2 Hubs, 93 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Malleable Iron, Tri-Coated, 13 in L x 4.13 in W

MFG #: BLR150-M

EECO #: APBLR150M

Brand: Appleton
UPC #: 781381463591
Attributes
Features
Documents
Product Information
Attributes
Finish
Tri-Coated
UNSPSC
39131708
Hub Size
1-1/2
Material
Malleable Iron
Application
Rigid Metal/IMC Conduit Applications
Number of Hubs
2
Connection Type
Tapered FNPT
Enclosure
NEMA FB-1
Type
Type LR
Capacity
93
Includes
Assembled Cover and Neoprene Gasket
Dimensions
13 in L x 4.13 in W
Features
  • Larger body size facilitates pulling of large and heavy conductors
  • Specially designed raised cast covers provide additional wiring area
  • Mogul UNILETS™ for pulling straight, 45 or 90 deg angle turns and/or making taps and splices
  • Exclusive built-in rollers facilitate cable pulling
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Covers have captive stainless steel screws to speed installation, prevent freezing of screws
  • Mogul have an end hub
  • The second hub is in the side (LL left and LR right) instead of the back
  • For use with threaded rigid/IMC metal conduit
  • Triple coated (zinc electroplated, chromate and epoxy powder coated)
  • Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2)
