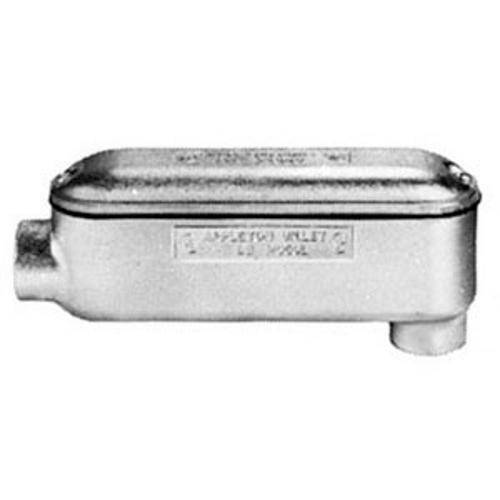

Appleton® Mogul UNILETS™ BLB150-M NEC 6x Type LB Conduit Outlet Body With Cover and Gasket, 1-1/2 in Hub, 107 cu-in, Malleable Iron, Triple Coated

Short Description

Appleton® NEC 6x Mogul Conduit Outlet Bodies, Covers and Gaskets feature larger body sizes to facilitate the pulling of large and heavy conductors. They have specially designed raised cast covers that provide additional wiring area. These conduit bodies are ideal for pulling straight, 45 or 90 deg angle turns and/or making taps and splices.

Appleton® Mogul UNILETS™ Conduit Outlet Body, Type LB, Series: NEC 6x, 1-1/2 in Hub, 2 Hubs, 107 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Malleable Iron, Triple Coated Finish, 13 in L x 3.13 in W x 5.25 in H Dimensions
MFG #: BLB150-M

EECO #: APBLB150M

Brand: Appleton
UPC #: 781381463485
Attributes
Features
Documents
Product Information
Attributes
Finish
Triple Coated
UNSPSC
39131708
Used On
IMC/Rigid Conduit
Approval
UL 514B, CSA C22.2, NEC
Hub Size
1-1/2
Material
Malleable Iron
Form Type
Mogul
Application
Rigid Metal and IMC Conduit Applications
Hub Location
90 Degree
Installation
Threaded
Access Opening
Back
Number of Hubs
2
Connection Type
Tapered FNPT
Enclosure
NEMA FB-1
Size
13 Inch Lengthx 3.13 Inch Width x 5.25 Inch Height
Type
Type LB
Style
LB
Series
NEC 6x
Capacity
107
Cover Type
Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Malleable Iron
Dimensions
13 in L x 3.13 in W x 5.25 in H
Features
  • Exclusive built-in rollers facilitate cable pulling
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Covers have captive stainless steel screws to speed installation, prevent freezing of screws
  • Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2)
  • Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A)
Appleton_CLB1010_MT_Warranty
Appleton_BC250_M_Specification_Sheet
Qty Unit price
Ea
1 $230.82

Slqt
1 $230.82

Stpk
1 $923.28

Unit
1 $230.82
