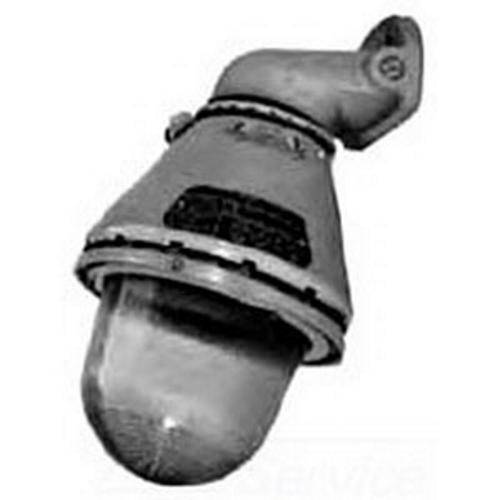

Appleton® UNILETS™ ASB1575 A-51™ Factory Sealed Explosionproof Incandescent Luminaire, 1 A23/PS25 Incandescent Lamp, 150 to 300 W Fixture, Epoxy Clad Powder Coated Housing
Share Share Print Print
Appleton

Appleton® UNILETS™ ASB1575 A-51™ Factory Sealed Explosionproof Incandescent Luminaire, 1 A23/PS25 Incandescent Lamp, 150 to 300 W Fixture, Epoxy Clad Powder Coated Housing

Short Description

Illuminate your workspace safely with the Appleton® UNILETS™ ASB1575 A-51™ Explosionproof Incandescent Luminaire. Designed for durability and performance, this factory-sealed fixture accommodates a powerful 150 to 300 W incandescent lamp, ensuring reliable lighting in hazardous environments. Its robust epoxy clad powder-coated housing and glass lens make it a perfect choice for demanding applications.Enhanced by AI

Appleton® UNILETS™ Explosionproof Incandescent Luminaire, Factory Sealed, Series: A-51™, 150 to 300 W Fixture, A23/PS25 Incandescent Lamp, 150 to 300 W Lamp, Medium Lamp Base, 1 Lamps, Glass Lens, 15 deg Short Bracket Mounting, Malleable Iron Housing Material, Epoxy Clad Powder Coated Housing Finish, 9.13 in L x 16.19 in W Dimensions

MFG #: ASB1575

EECO #: APASB1575

Brand: Appleton
UPC #: 781381166560
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111525
Lamp Type
A23/PS25 Incandescent
Application
For use in chemical and petrochemical plants and in other heavy process areas where ignitable vapors, dust, moisture and corrosive atmospheres may be present, suitable for use in wet locations, use with threaded metal conduit
Mounting Type
15 deg Short Bracket
Number of Lamps
1
Housing Material
Malleable Iron
Type
Factory Sealed
Series
A-51™
Warranty
Limited
Lens Type
Glass
Dimensions
9.13 in L x 16.19 in W
Lamp Wattage
150 to 300
Housing Finish
Epoxy Clad Powder Coated
Lamp Base Type
Medium
Features
  • All A-51 fixtures are factory sealed, no external sealing fittings required
  • New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring
  • Safe, easy servicing or replacement without disconnecting any wiring
  • Wireless fixture unit threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
  • All joints are flame-tight
  • Specially formulated two coat baked epoxy enamel provides superior protective finish to resist corrosion
  • New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood
  • Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning
  • All fixtures have aluminum inner reflector for increased lumen efficiency
  • Easily mount to globe ring with 3 screws
