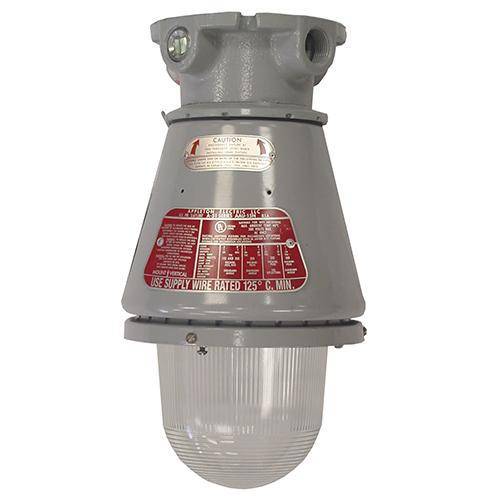

Appleton® UNILETS™ AC20100 A-51™ Factory Sealed Explosionproof Incandescent Luminaire, PS-30 Incandescent Lamp, Epoxy Clad Powder Coated Housing
Share Share Print Print
Appleton

Appleton® UNILETS™ AC20100 A-51™ Factory Sealed Explosionproof Incandescent Luminaire, PS-30 Incandescent Lamp, Epoxy Clad Powder Coated Housing

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Illuminate your space safely with the Appleton® UNILETS™ AC20100 A-51™ Explosionproof Incandescent Luminaire. Designed for durability and efficiency, this factory-sealed light fixture features a robust epoxy clad powder coated housing and is perfect for ceiling mounting. Ideal for hazardous environments, it ensures reliable performance with a PS-30 incandescent lamp.Enhanced by AI

Appleton® UNILETS™ Explosionproof Incandescent Luminaire, Factory Sealed, Series: A-51™, PS-30 Incandescent Lamp, 200 to 300 W Lamp, Medium Lamp Base Type, Glass Lens, Ceiling Mount, Malleable Iron Housing, Epoxy Clad Powder Coated Housing, 15.54 in L x 8.81 in W

MFG #: AC20100

EECO #: APAC20100

Brand: Appleton
UPC #: 781381154741
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111525
Lamp Type
PS-30 Incandescent
Application
Used in chemical and petrochemical plants and in other heavy process areas where ignitable vapors, dust, moisture and corrosive atmospheres may be present, use in wet locations and threaded metal conduit
Mounting Type
Ceiling
Housing Material
Malleable Iron
Type
Factory Sealed
Series
A-51™
Lens Type
Glass
Dimensions
15.54 in L x 8.81 in W
Lamp Wattage
200 to 300
Housing Finish
Epoxy Clad Powder Coated
Lamp Base Type
Medium
Features
  • All A-51 fixtures are factory sealed, no external sealing fittings required
  • New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring
  • Safe, easy servicing or replacement without disconnecting any wiring
  • Wireless fixture unit threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
  • All joints are flame-tight
  • Specially formulated two coat baked epoxy enamel provides superior protective finish to resist corrosion
  • New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood
  • Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning
  • All fixtures have aluminum inner reflector for increased lumen efficiency
  • Easily mount to globe ring with 3 screws
