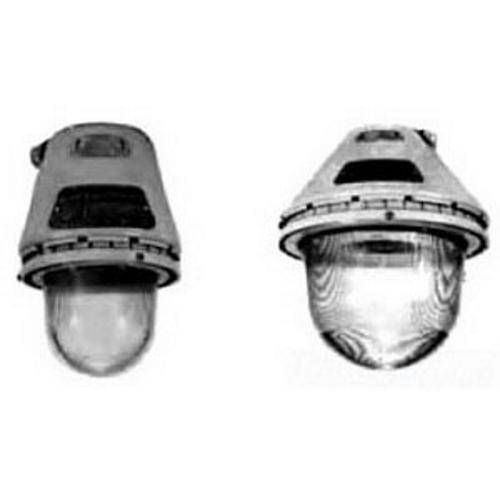

Appleton® UNILETS™ AAU-1N A-51™ Explosionproof Factory Sealed Incandescent Luminaire, (1) Incandescent Lamp, 60 to 100 W Fixture, Epoxy Clad/Powder Coated Housing
Share Share Print Print
Appleton

Appleton® UNILETS™ AAU-1N A-51™ Explosionproof Factory Sealed Incandescent Luminaire, (1) Incandescent Lamp, 60 to 100 W Fixture, Epoxy Clad/Powder Coated Housing

Short Description

Illuminate your industrial space with the Appleton® UNILETS™ AAU-1N A-51™ Explosionproof Incandescent Luminaire, designed for safety and durability. This robust fixture accommodates a 60 to 100 W incandescent lamp and features a factory-sealed design with an epoxy clad/powder coated housing, ensuring reliable performance in hazardous environments.Enhanced by AI

Appleton® UNILETS™ Incandescent Luminaire, Explosionproof Factory Sealed, Series: A-51™, 60 to 100 W Fixture, Incandescent Lamp, 60 to 100 W Lamp, A21 Medium Lamp Base, 1 Lamp, Explosionproof/Heat/Impact-Resistant Glass Lens, Threaded Mounting, Copper Free Aluminum Housing Material, Epoxy Clad/Powder Coated Housing Finish

MFG #: AAU-1N

EECO #: APAAU1N

Brand: Appleton
UPC #: 781381130783
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39111525
Lamp Type
Incandescent
Application
Used in chemical and petrochemical plants and in other heavy process areas where ignitable vapors, dust, moisture and corrosive atmospheres may be present, use in wet locations and threaded metal conduit
Mounting Type
Threaded
Number of Lamps
1
Housing Material
Copper-Free Aluminum
Type
Explosionproof Factory Sealed
Series
A-51™
Lens Type
Explosionproof/Heat/Impact-Resistant Glass
Lamp Wattage
60 to 100
Housing Finish
Epoxy Clad/Powder Coated
Lamp Base Type
A21 Medium
Features
  • All A-51™ fixtures are factory-sealed, no external sealing fittings required
  • New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts loosen two screws, rotate and remove for quick wiring
  • Safe, easy servicing or relamping without disconnecting any wiring
  • Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit
  • All joints are flame tight
  • Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion
  • New high temperature glass reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood
  • Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning
  • All fixtures have aluminum inner reflector for increased lumen efficiency
  • Easily mount to globe ring with 3 screws
Appleton_CLB1010_MT_Warranty
Appleton_AAU_2NS_Specification_Sheet
