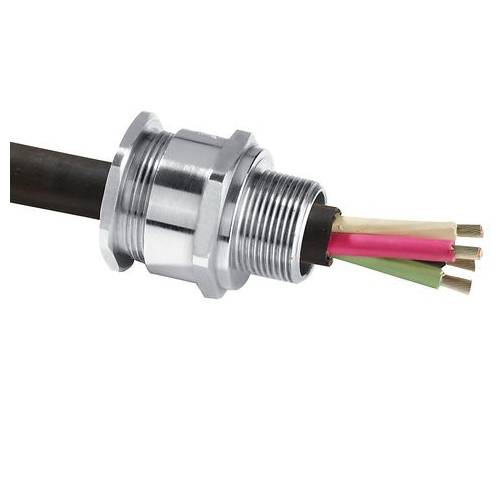

Appleton® 50SA2F4 Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 50S Trade, 1.22 to 1.5 in Cable Openings, 316L Stainless Steel
Share Share Print Print
Appleton

Appleton® 50SA2F4 Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 50S Trade, 1.22 to 1.5 in Cable Openings, 316L Stainless Steel

Short Description

Appleton® A2F series nickel plated brass cable glands are suitable for unarmored and exterior braid armor with protective sheath cable certified for enclosures with the following protection modes, Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof, Series: A2F Series, 50S Trade, Cable Openings: 1.22 to 1.5 in, Exterior Braid Armored/Unarmored Cable, M50 Connection, 316L Stainless Steel, -60 to 130 deg C, 1.73 in L x 2.38 in W Dimensions
MFG #: 50SA2F4

EECO #: AP50SA2F4

Brand: Appleton
UPC #: 781381971522
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121431
Material
316L Stainless Steel
Cable Type
Exterior Braid Armored/Unarmored
Trade Size
50S
Application
For onshore and offshore use and other hazardous areas exposed to gases and dust
Connection Type
M50
Temperature Rating
-60 to 130
Type
Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof
Series
A2F Series
Dimensions
1.73 in L x 2.38 in W
Features
  • Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable
