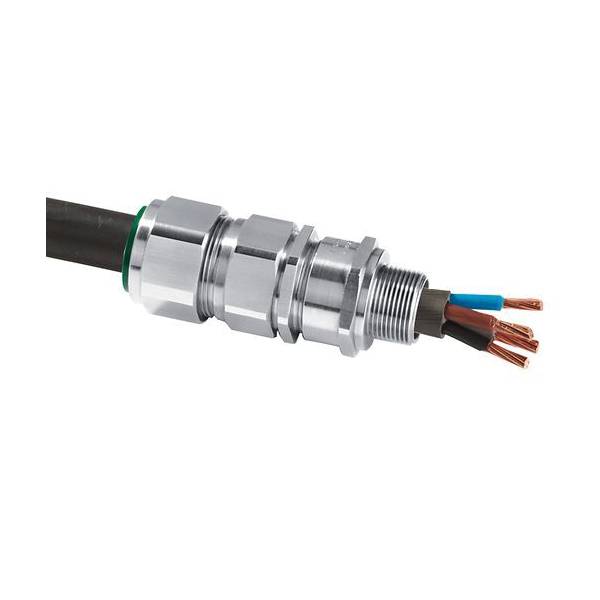

Appleton® 25SE1FW0755 Constructional Feature Explosionproof Flameproof Increased Safety Straight Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 25S Trade, 0.55 to 0.87 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 25SE1FW0755 Constructional Feature Explosionproof Flameproof Increased Safety Straight Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 25S Trade, 0.55 to 0.87 in Cable Openings, Brass, Nickel Plated

Short Description

Appleton® E1FW nickel plated brass cable glands are for single wire armored cables (SWA with wire and lead sheath). They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Increased Safety Straight, Series: E1FW, 25S Trade, Cable Openings: 0.55 to 0.87 in, Single Wire Armored Cable, 1-1/4 in NPT Connection, Brass, Nickel Plated, -60 to 130 deg C, 1.63 in W Dimensions
MFG #: 25SE1FW0755

EECO #: AP25SE1FW0755

Brand: Appleton
UPC #: 781381991995
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Single Wire Armored
Trade Size
25S
Application
For onshore and offshore use and other hazardous areas exposed to gases and dust
Connection Type
1-1/4 in NPT
Temperature Rating
-60 to 130
Type
Constructional Feature Explosionproof Flameproof Increased Safety Straight
Series
E1FW
Dimensions
1.63 in W
Features
  • The cable gland allows mechanical cable retention and earth continuity via cable armor termination
  • A detachable armor cone and AnyWay clamping ring arrangement facilitates remote make off and enables cable to be disconnected from the equipment
  • Inspection of the armor can be carried out while still maintaining the explosionproof protection mode of the enclosure
  • Without entry thread seal
