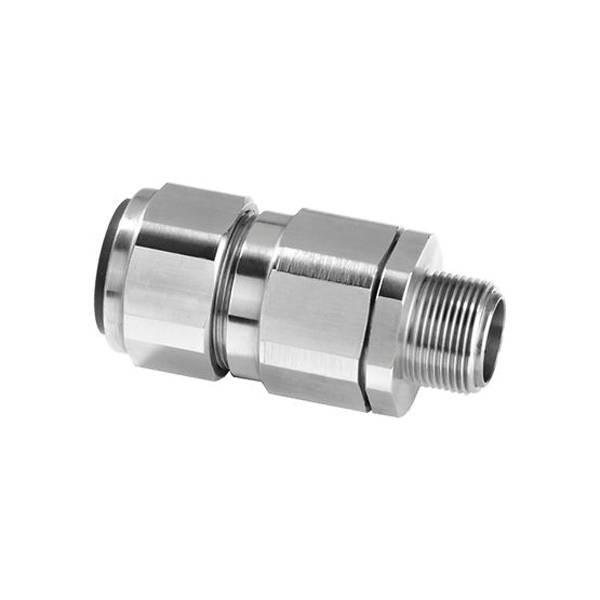

Appleton® 20SPX2KX5 PX2KX Straight Cable Gland Connector, 20S Trade, 0.37 to 0.63 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 20SPX2KX5 PX2KX Straight Cable Gland Connector, 20S Trade, 0.37 to 0.63 in Cable Openings, Brass, Nickel Plated

Short Description

Ensure reliable and secure connections with the Appleton® 20SPX2KX5 PX2KX Straight Cable Gland Connector. Designed for 20S trade cables with openings ranging from 0.37 to 0.63 inches, this durable brass connector features a nickel-plated finish, making it ideal for wire braid armor, jacketed, and marine shipboard applications.Enhanced by AI

Appleton® Cable Gland Connector, Straight, Series: PX2KX, 20S Trade, Cable Openings: 0.37 to 0.63 in, Wire Braid Armor/Jacketed/Marine Shipboard Cable, M20, Brass, Nickel Plated

MFG #: 20SPX2KX5

EECO #: AP20SPX2KX5

Brand: Appleton
UPC #: 781381250146
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Wire Braid Armor/Jacketed/Marine Shipboard Cable
Trade Size
20S
Application
Explosionproof class I division 1 brass cable connector suitable for wire braid armor or tape
Connection Type
M20
Type
Straight
Series
PX2KX
Features
  • Connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores
  • Connector provides mechanical cable retention and electrical continuity via armor termination
  • PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored cables
  • Armor termination removable armor cone and ring
  • Sealing area: displacement seal concept
  • Low smoke fumes thermoplastic elastomer seal
  • Epoxy putty
  • Entry thread seal not supplied
  • Constructional feature explosionproof
