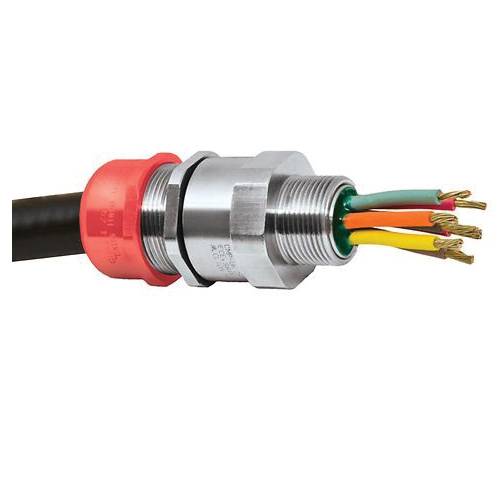

Appleton® 20LPXREX0755X Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight Cable Gland Connector, 20L Trade, 0.39 to 0.63 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 20LPXREX0755X Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight Cable Gland Connector, 20L Trade, 0.39 to 0.63 in Cable Openings, Brass, Nickel Plated

Short Description

Appleton® PXSS2K-REX series liquid resin barrier type cable connectors are flameproof class I cable connectors suitable for unarmored, extra hard usage, tray (TC) and shipboard cables. The gland utilizes a liquid pour resin seal that vastly reduces installation time and associated costs. This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply.

Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight, Series: PXSS2K-REX, 20L Trade, Cable Openings: 0.39 to 0.63 in, Shipboard/Tray/Type SO/Unarmored Cable, 3/4 in NPT Connection, Brass, Nickel Plated, -60 to 100 deg C, 2.97 in L x 1.3 in W Dimensions
MFG #: 20LPXREX0755X

EECO #: AP20LPXREX0755X

Brand: Appleton
UPC #: 781381393942
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Shipboard/Tray/Type SO/Unarmored
Trade Size
20L
Application
For use in hazardous locations
Connection Type
3/4 in NPT
Temperature Rating
-60 to 100
Type
Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight
Series
PXSS2K-REX
Dimensions
2.97 in L x 1.3 in W
Features
  • Utilizes RapidEx high speed liquid resin sealing compound included with each gland
  • The gland utilizes a liquid pour resin seal, that vastly reduces installation time and associated costs
  • This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply
  • Connector provides an environmental seal on the cable outer jacket and an explosionproof liquid resin barrier seal around the cable inner cores
  • Sealing area - displacement seal concept
  • Sealing area - inner liquid resin barrier and outer sheath
  • Without entry thread seal
