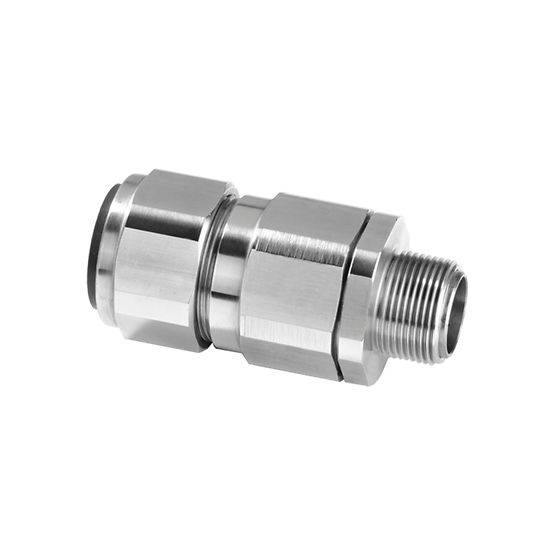

Appleton® 2016PX2KX5 PX2KX Compound Barrier Straight Cable Gland Connector, M20 Trade, 0.24 to 0.45 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 2016PX2KX5 PX2KX Compound Barrier Straight Cable Gland Connector, M20 Trade, 0.24 to 0.45 in Cable Openings, Brass, Nickel Plated

Short Description

Hazardous location cable glands provide mechanical retention, strain relief and earth continuity for electrical cables at the entry of equipment enclosures. Appleton® group offers models suitable for use with any type of cable, with sealing systems designed to keep out the elements and maintain the equipment hazardous location approvals. We offer blanking plugs, cable connectors, cord grips, sealing fittings, tools and accessories to accommodate virtually any need, wherever electrical cables are used in hazardous locations or adverse environments.

Appleton® Cable Gland Connector, Compound Barrier Straight, Series: PX2KX, M20 Trade, Cable Openings: 0.24 to 0.45 in, Jacketed/Marine Shipboard/Wire Braid Armored Cable, Thread Connection, Brass, Nickel Plated, -60 to 130 deg C, 1.32 in Dia x 2.3 in L Dimensions
MFG #: 2016PX2KX5

EECO #: AP2016PX2KX5

Brand: Appleton
UPC #: 781381250139
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Jacketed/Marine Shipboard/Wire Braid Armored
Trade Size
M20
Application
For wire braid armor and jacketed cables
Connection Type
Thread
Temperature Rating
-60 to 130
Type
Compound Barrier Straight
Series
PX2KX
Dimensions
1.32 in Dia x 2.3 in L
Features
  • Connector provides an environmental seal on the cable outer jacket and an explosion proof compound barrier seal around the cable inner cores
  • Connector provides mechanical cable retention and electrical continuity via armor termination
  • The connector is UL Listed for metric threads
  • PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored and jacketed cables
  • Armor termination - removable armor cone and ring, sealing area(s)- displacement seal concept
