Appleton® 2016E1FX5 Constructional Feature Explosionproof Flameproof Increased Safety Straight Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 20S16 Trade, 0.24 to 0.52 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

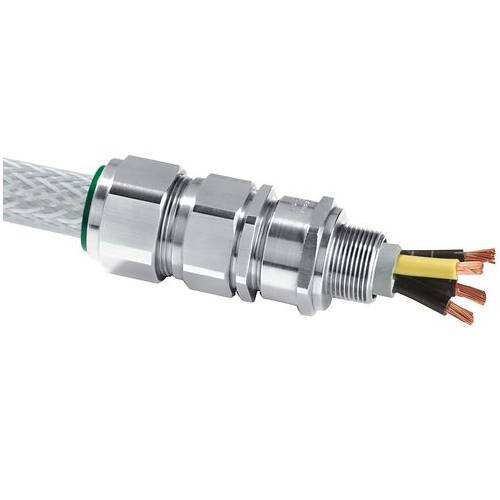

Appleton® 2016E1FX5 Constructional Feature Explosionproof Flameproof Increased Safety Straight Cable Gland Connector With Low Smoke Fume Thermoplastic Elastomer Seal, 20S16 Trade, 0.24 to 0.52 in Cable Openings, Brass, Nickel Plated

Short Description

Appleton® E1FX series nickel plated brass cable glands are ideal for use with armored cables (braid, tape with lead sheath). They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Increased Safety Straight, Series: E1FX Series, 20S16 Trade, Cable Openings: 0.24 to 0.52 in, Armored Cable, 1/2 in NPT Connection, Brass, Nickel Plated, -60 to 130 deg C, 1.04 in W Dimensions
MFG #: 2016E1FX5

EECO #: AP2016E1FX5

Brand: Appleton
UPC #: 781381983167
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Armored
Trade Size
20S16
Application
For onshore and offshore use and other hazardous areas exposed to gases and dust
Connection Type
1/2 in NPT
Temperature Rating
-60 to 130
Type
Constructional Feature Explosionproof Flameproof Increased Safety Straight
Series
E1FX Series
Dimensions
1.04 in W
Features
  • The cable gland allows mechanical cable retention and earth continuity via cable armor termination
  • A detachable armor cone and AnyWay clamping ring arrangement facilitates remote make off and enables cable to be disconnected from the equipment
  • Inspection of the armor can be carried out while still maintaining the explosionproof protection mode of the enclosure
  • Without entry thread seal
