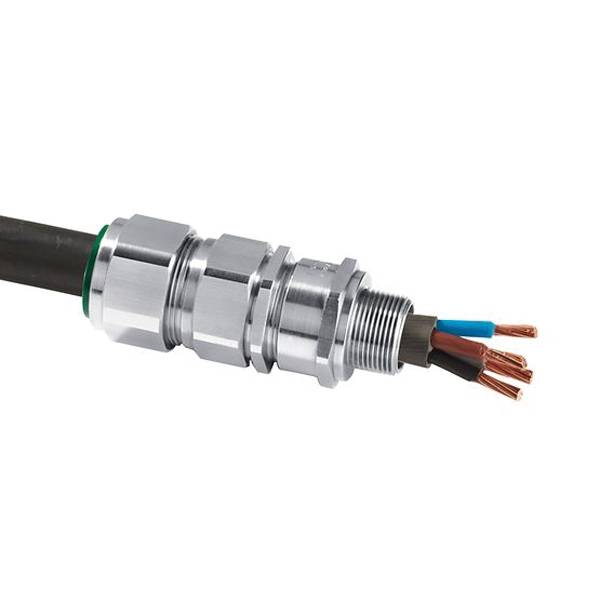

Appleton® 2016E1FW0505 E1FW Straight Cable Gland, 1/2 in NPT Thread, 0.24 to 0.52 in Cable, 0.59 in L Thread, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 2016E1FW0505 E1FW Straight Cable Gland, 1/2 in NPT Thread, 0.24 to 0.52 in Cable, 0.59 in L Thread, Brass, Nickel Plated

Short Description

Appleton® E1FW Nickel Plated Brass Cable Glands are for Single Wire Armored cables (SWA with wire and lead sheath). They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland, Straight, Series: E1FW, 1/2 in NPT Thread, 0.24 to 0.52 in Cable Dia, 0.59 in Thread Length, -60 to 130 deg C, Brass, Nickel Plated
MFG #: 2016E1FW0505

EECO #: AP2016E1FW0505

Brand: Appleton
UPC #: 781381290302
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Application
For use in hazardous areas with single wire armor (SWA) cable
Temperature Rating
-60 to 130
Type
Straight
Series
E1FW
Thread Size
1/2 in NPT
Thread Length
0.59
Cable Diameter
0.24 to 0.52
Features
  • Cable gland with elastomer seal for use in hazardous areas with single wire armor (SWA) cable
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A detachable armor cone and anyway clamping ring arrangement facilitates remote make off and enables cable to be disconnected from the equipment
  • Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
  • Sealing technique: inner displacement seal concept and LRS outer seal (load retention seal)
  • Constructional feature flameproof
