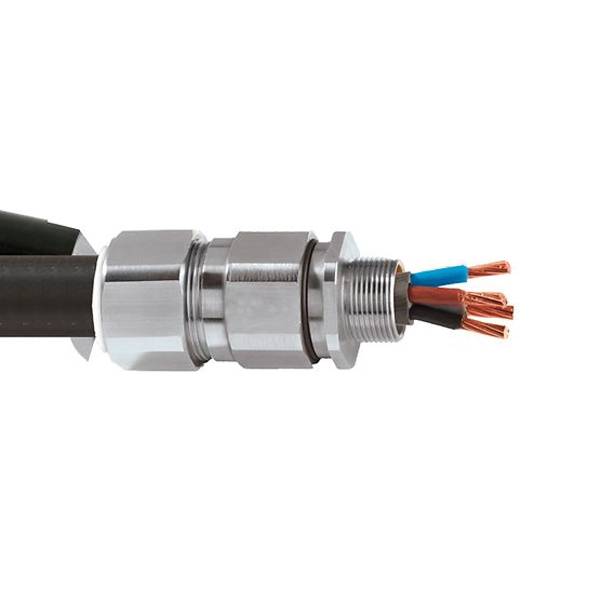

Appleton® 2016C2KX0755 Straight Cable Gland Connector, 2016 Trade, 0.24 to 0.52 in Cable Openings, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 2016C2KX0755 Straight Cable Gland Connector, 2016 Trade, 0.24 to 0.52 in Cable Openings, Brass, Nickel Plated

Short Description

Appleton® C2KX Marine Cable Connectors are for armor braid shipboard cable and all IEC braid cables is suitable for ordinary and wet locations and provides mechanical retention and electrical continuity via a removable armor termination.

Appleton® Cable Gland Connector, Straight, Series: C2KX, 2016 Trade, Cable Openings: 0.24 to 0.52 in, Wire Braid Armor/Jacketed/Marine Shipboard Cable, 3/4 in NPT Connection, Brass, Nickel Plated
MFG #: 2016C2KX0755

EECO #: AP2016C2KX0755

Brand: Appleton
UPC #: 781381251587
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Cable Type
Wire Braid Armor/Jacketed/Marine Shipboard Cable
Trade Size
2016
Application
For armor braid shipboard cable and all IEC braid cables is suitable for ordinary and wet locations and provides mechanical retention and electrical continuity via a removable armor termination
Connection Type
3/4 in NPT
Type
Straight
Series
C2KX
Features
  • Connector provides an environmental seal on the cable outer jacket and is UL Listed for NPT or metric entry threads
  • The C2KX forms part of a comprehensive range of deluge proof connectors for marine shipboard and IEE45 armor jacketed cables
  • Permitted for use in division 2 areas on equipment without internal source of ignition
  • Armor termination removable armor cone and ring
  • Sealing technique: displacement seal concept
  • Sealing area: outer sheath
  • Entry thread seal not supplied
  • Constructional feature delugeproof, oil resistant
  • Low smoke fumes thermoplastic elastomer seal
  • Optional 3/4 in NPT connection
