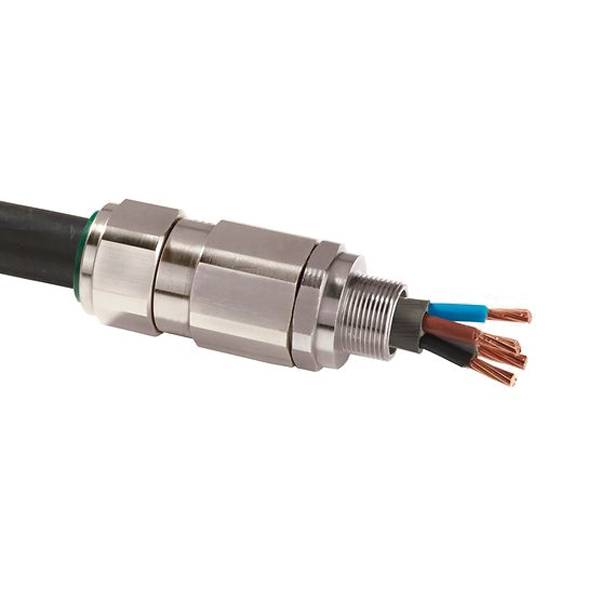

Appleton® 100T35 T3 Series Straight Cable Gland, M100 Thread, 3.39 to 4 in Cable, 24 mm L Thread, Brass, Nickel Plated

Short Description

Appleton® T3 Series Nickel Plated Brass Cable Glands are suitable for all types of armored cable certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and Ex d flameproof. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland, Straight, Series: T3 Series, M100 Thread, 3.39 to 4 in Cable Dia, 24 mm Thread Length, -60 to 130 deg C, Brass, Nickel Plated
MFG #: 100T35

EECO #: AP100T35

Brand: Appleton
UPC #: 781381251051
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Application
For use in hazardous areas with all types of armored cable
Temperature Rating
-60 to 130
Type
Straight
Series
T3 Series
Thread Size
M100
Thread Length
24
Cable Diameter
3.39 to 4
Features
  • Cable gland with elastomer seal for use in hazardous areas with all types of armored cable
  • This product utilizes a unique compensating displacement seal (CDS) system which provides full compatibility with restricted breathing equipment
  • The CDS system is designed to alleviate any pressure on soft bedded cables
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A reversible armor cone and anyway universal clamping ring arrangement allows the cable to be easily disconnected from equipment
  • The cable gland is IP66/68 rated with deluge protection to DTS01: 91
  • Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
  • Sealing technique: Inner displacement seal and LRS (load retention seal) outer seal
  • Constructional feature flameproof
