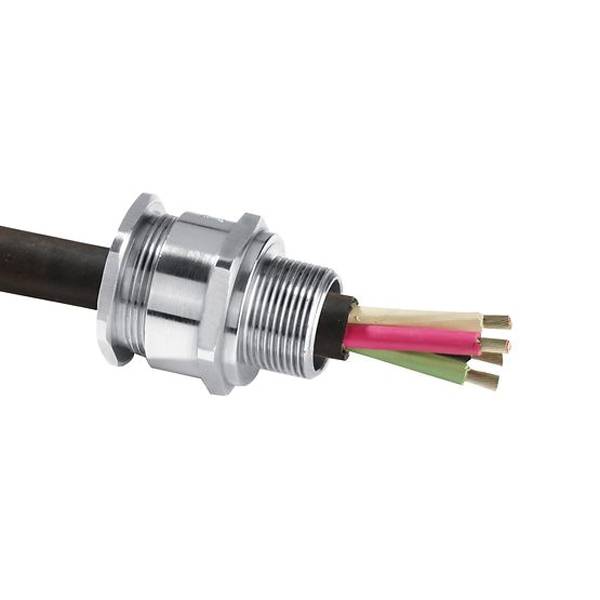

Appleton® 100A2F5 A2F Straight Cable Gland, M100 Thread, 2.99 to 3.58 in Cable, 0.94 in L Thread, Brass, Nickel Plated
Share Share Print Print
Appleton

Appleton® 100A2F5 A2F Straight Cable Gland, M100 Thread, 2.99 to 3.58 in Cable, 0.94 in L Thread, Brass, Nickel Plated

Short Description

Appleton® A2F Series Nickel Plated Brass Cable Glands are suitable for unarmored and exterior braid armor with protective sheath cable certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.

Appleton® Cable Gland, Straight, Series: A2F, M100 Thread, 2.99 to 3.58 in Cable Dia, 0.94 in Thread Length, -60 to 130 deg C, Brass, Nickel Plated, 2.83 in L
MFG #: 100A2F5

EECO #: AP100A2F5

Brand: Appleton
UPC #: 781381248754
Attributes
Features
Documents
Product Information
Attributes
Finish
Nickel Plated
UNSPSC
39121431
Material
Brass
Application
For unarmored cables
Temperature Rating
-60 to 130
Type
Straight
Series
A2F
Dimensions
2.83 in L
Thread Size
M100
Thread Length
0.94
Cable Diameter
2.99 to 3.58
Features
  • Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable
