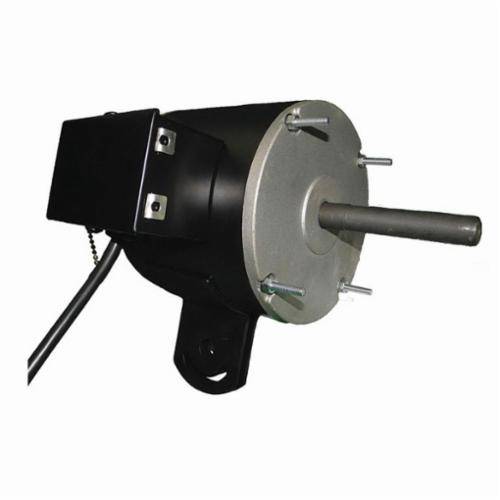

Airmaster® 78018 Commercial Non-Oscillating Motor With Supply Cord and Plug, 115 VAC, 1/4 hp, 5/8 in Dia x 3-1/2 in L Shaft, Domestic
Share Share Print Print
Airmaster Fan

Airmaster® 78018 Commercial Non-Oscillating Motor With Supply Cord and Plug, 115 VAC, 1/4 hp, 5/8 in Dia x 3-1/2 in L Shaft, Domestic

Short Description

Boost your commercial operations with the Airmaster® 78018 Non-Oscillating Motor. Designed for reliability and efficiency, this 1/4 hp motor features a robust supply cord and plug, making it an essential addition to your equipment lineup.Enhanced by AI

Airmaster® Non-Oscillating Motor, Commercial, 115 VAC, 1/4 hp, 5/8 in Shaft Dia, 3-1/2 in Shaft Length, 26.9 in Overall Height, Domestic

MFG #: 78018

EECO #: AIC1A

Brand: Airmaster Fan
UPC #: 783429780189
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26101105
Voltage Rating
115
Type
Commercial
Warranty
3 Years
Horsepower
1/4
Shaft Length
3-1/2
Overall Height
26.9
Shaft Diameter
5/8
Features
  • Class B, Yoke mounting, ball bearing motor
  • Auto thermal protection, CWSE motor shaft rotation
  • Pedestal fan sub application
  • For commercial air circulators
  • 3-speed, 1100 rpm nameplate, 3.5 a full load, 60 Hz, 1 phase, 48YZ frame, 1 motor service factor, 40 deg C ambient temperature, 5-3/4 in body dia, 1001-1100 rpm
