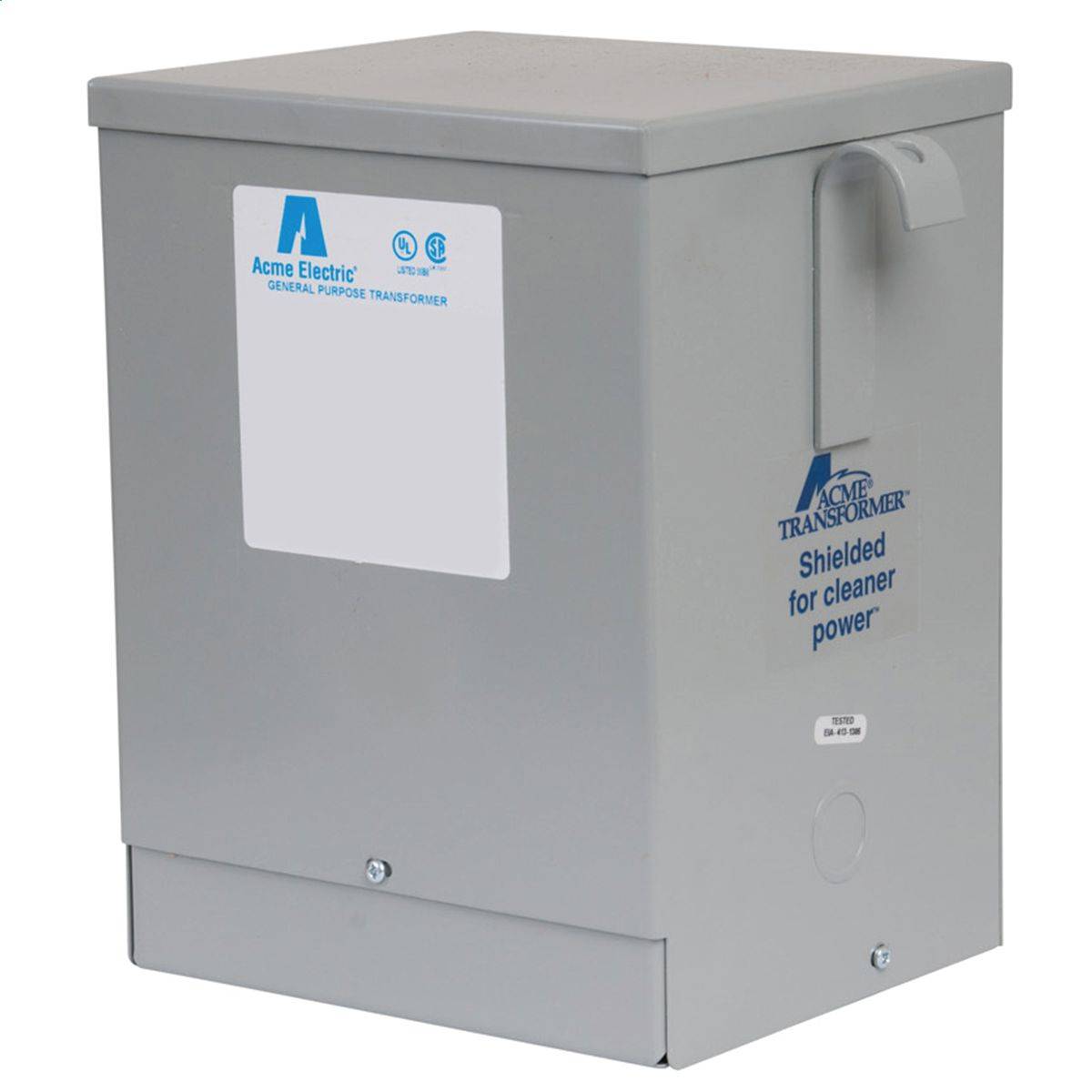

Acme Electric® TF279304S Air Colled/Dry Distribution Transformer, 190/200/208/220/380/400/416/440 VAC Primary, 110/220 VAC Secondary, 7.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Acme low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 V and below. Encapsulated units are offered in ratings up to 15 kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Acme Electric® Distribution Transformer, Air Colled/Dry, 190/200/208/220/380/400/416/440 VAC Primary, 110/220 VAC Secondary, 7.5 kVA, 50/60 Hz, 1 ph, Wire Lead, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, 10.84 in L x 13.5 in W x 15.19 in H

MFG #: TF279304S

EECO #: AETF279304S

Brand: ACME Electric
UPC #: 047503841822
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121001
Power Rating
7.5
Mounting Type
Wall
Enclosure Type
NEMA 3R
Connection Type
Wire Lead
Frequency Rating
50/60
Temperature Rating
115
Warranty
10 Year Limited
Dimensions
10.84 in L x 13.5 in W x 15.19 in H
Primary Voltage
190/200/208/220/380/400/416/440
Transformer Size
10 Year Limited
Secondary Voltage
110/220
Transformer Rating
39121001
Transformer Primary Voltage Rating
Air Colled/Dry
Transformer Secondary Voltage Rating
047503841822
Features
  • Encapsulated core and coil
  • Shielded for cleaner power
  • Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration
  • Quiet operation with sound levels well below NEMA standards
  • Export model
  • 190/200/208/220 x 380/400/416/440 VAC primary voltage
  • Steel enclosure
  • Air cooled/dry cooling
  • Two winding primary, two winding secondary configuration
  • Aluminum windings
  • Epoxy encapsulated
IDW_DOCUMENT_003fca30ce16fa38378ff5a4b74e025dd721ea28964e23b5b80e4404d7292c14
IDW_DOCUMENT_4c11fab43258d9be3f20dea702ab9645ae65670a7f2c62f24c8c09faca2f8bd0
IDW_DOCUMENT_858bf27fd1235e458fc6b1dc0c02ef8c2f87f37cd766401fc5ea7d53e2bb3d6f
Qty Unit price
Ea
1 $1,154.13
