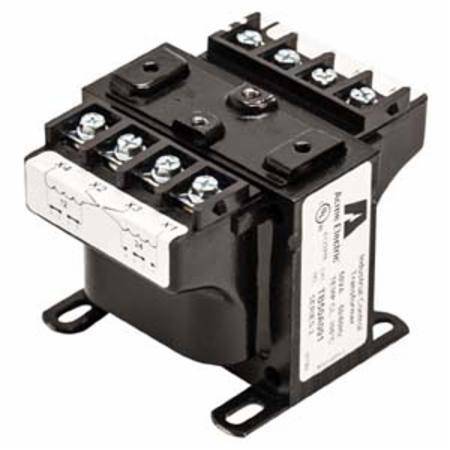

75 VA, 1-Phase, Hubbell (Acme Electric) TB75A004C Encapsulated Industrial Control Transformer, 208/230/460 V Primary, 24/115 V Secondary

Short Description

75 VA, 208/230/460 V Primary, 24/115 V Secondary, 50/60 Hz, 1-Phase, Encapsulated Industrial Control Transformer

Encapsulated Industrial Control Transformer; Primary Voltage 200 Volt, 208/220 Volt, 230 Volt, 240/440 Volt, 460 Volt, 480 Volt; Secondary Voltage 23 Volt, 24 Volt, 25/110 Volt, 115 Volt, 120 Volt; Frequency Rating 50/60 Hertz; Power Rating 75 Volt Amp; Insulation Class 105; Terminal Type Terminal Block; Mounting Heavy Gauge Steel Feet; Size 3.46 Inch Length x 3.38 Inch Width x 4.5 Inch Height; Approval UL, CUL; Applicable Standard NEMA, ANSI, OSHA; Number of Phases 1

MFG #: TB75A004C

EECO #: AETB75A004C

Brand: ACME Electric
UPC #: 047503002742
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121026
Approval
UL, CUL
Power Rating
75 Volt Amp
Terminal Type
Terminal Block
Frequency Rating
50/60 Hertz
Insulation Class
105
Mounting
Heavy Gauge Steel Feet
Size
3.46 Inch Length x 3.38 Inch Width x 4.5 Inch Height
Primary Voltage
200 Volt, 208/220 Volt, 230 Volt, 240/440 Volt, 460 Volt, 480 Volt
Secondary Voltage
23 Volt, 24 Volt, 25/110 Volt, 115 Volt, 120 Volt
Applicable Standard
NEMA, ANSI, OSHA
Features
  • Epoxy Encapsulated Design Protects Core and Coil Assembly from Potentially Damaging Contaminants
  • Constructed with High Quality Silicon Steel Lamination to Minimize Core Losses and Increase Efficiency
  • Integrally Molded Terminal Blocks with Isolation Barriers to Prevent Arc Over
  • Secondary Fuse Clips Factory Installed
  • Series-Parallel Connecting Links Save Wiring and Labor Costs
  • Terminal Blocks Allow Full Access for Ring Terminals for Easy Installation Even with Solid Strand Conductors
  • Copper Windings on All Groups
  • Heavy Gauge Steel Mounting Plate Adapts to Various Mounting Dimensions
  • Voltage Regulation Exceeds NEMA Requirements
  • Made in USA

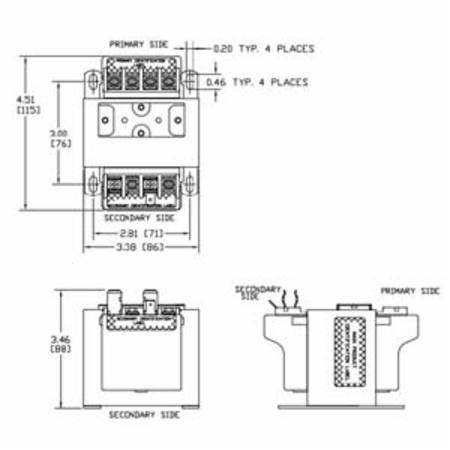

Acme_Electric_TB75A004C_Line_Drawing
ACMEPD_TB75A004C_CAD
ACMEPDE00759_2_3_13_14
ACMEPDE00760_1_3
Qty Unit price
Ea
1 $33.85

Slqt
1 $33.85

Stpk
1 $33.85

Unit
1 $33.85
