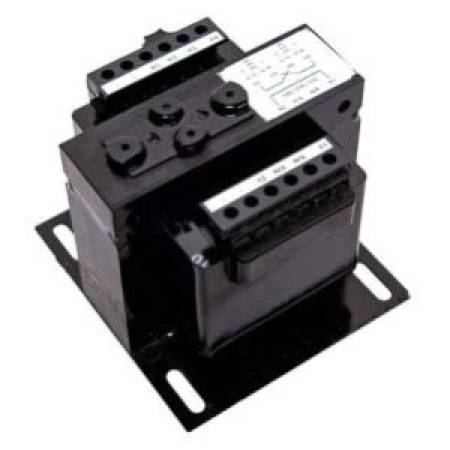

1500 VA, 1-Phase, Hubbell (Acme Electric) TB1500N008FO Industrial Control Transformer, 220/230/240 x 440/460/480 VAC Primary, 110/115/120 VAC Secondary
Share Share Print Print
Hubbell

1500 VA, 1-Phase, Hubbell (Acme Electric) TB1500N008FO Industrial Control Transformer, 220/230/240 x 440/460/480 VAC Primary, 110/115/120 VAC Secondary

Short Description

1500 VA, 220/230/240 x 440/460/480 VAC Primary, 110/115/120 VAC Secondary, 50/60 Hz, 1-Phase, Encapsulated, Industrial Control Transformer

Industrial Control Transformer; Primary Voltage 220/230/240 x 440/460/480 Volt AC; Secondary Voltage 110/115/120 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 1500 Volt Amp; Temperature Rise 55 Deg C; Mounting 1.1 Inch Length x 0.31 Inch Width (Slot); Size 7 Inch Width x 7.62 Inch Depth x 5.65 Inch Height; Approval UL, CUL, CSA; Applicable Standard NEMA, ANSI, OSHA; Construction Type Encapsulated; Number of Phases 1; Application Motor Starters, Contactors, Solenoids, Timer Circuits, Relays, Control Panels, Robotics

MFG #: TB1500N008FO

EECO #: AETB1500N008F0

Brand: ACME Electric
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121026
Features
  • Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants
  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Integrally molded terminal blocks with isolation barriers to prevent arc over
  • Primary fuse blocks kits and easily adaptable
  • Secondary Fuse Clips factory installed, where applicable
  • Series-parallel connecting links save wiring and labor costs
  • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
  • Copper windings on all groups
  • Heavy gauge steel mounting plate adapts to various mounting dimensions
  • Voltage regulation exceeds NEMA requirements
