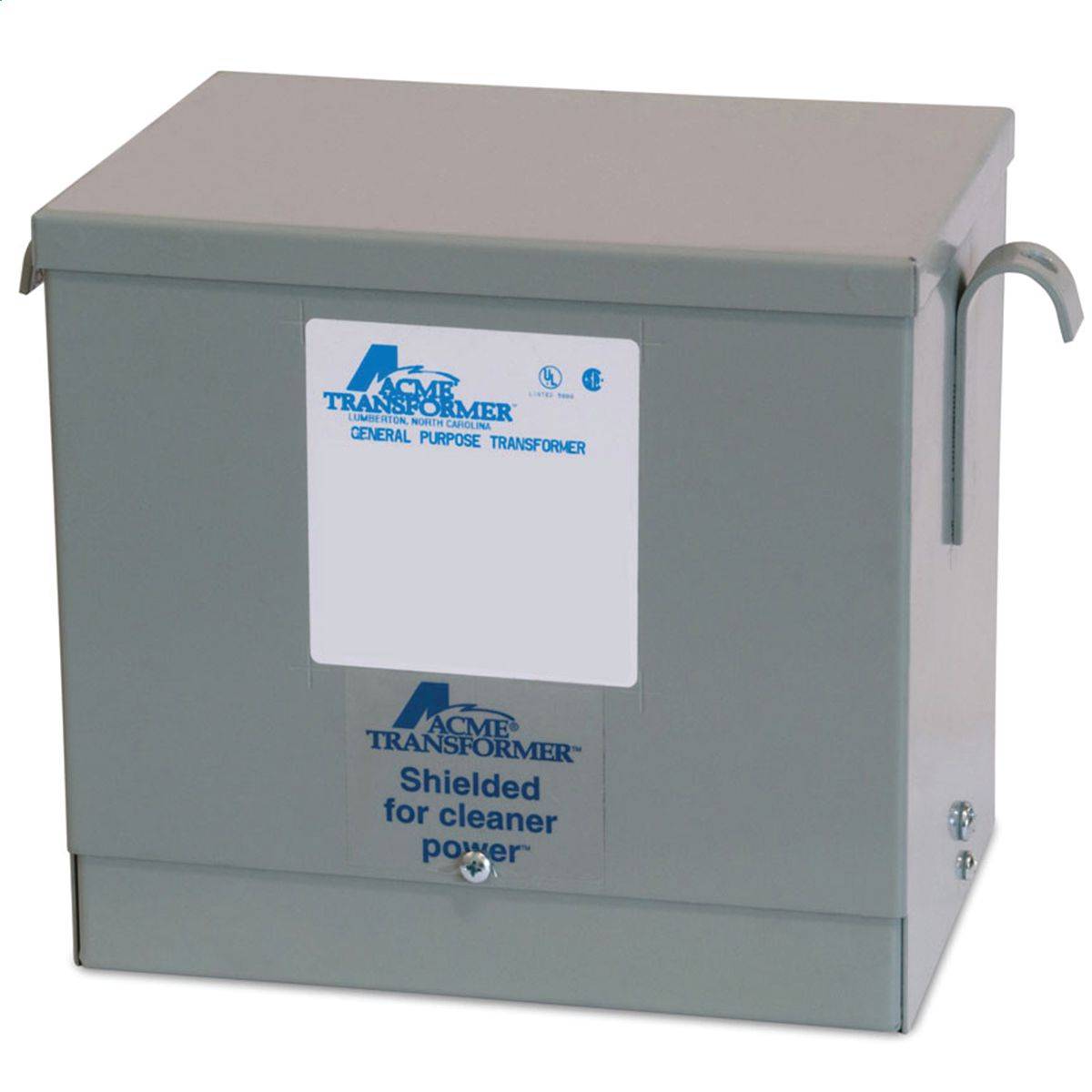

Acme Electric® T2A533081S Air Colled/Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 3 kVA Power Rating, 60 Hz, 3 ph Phase
Share Share Print Print
Hubbell

Acme Electric® T2A533081S Air Colled/Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 3 kVA Power Rating, 60 Hz, 3 ph Phase

Short Description

Acme low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 V and below. Encapsulated units are offered in ratings up to 15 kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Acme Electric® Distribution Transformer, Air Colled/Dry, 480D VAC Primary, 208Y/120 VAC Secondary, 3 kVA, 60 Hz, 3 ph, 6 A Maximum, Wire Lead, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, 7.47 in L x 12.37 in W x 10.38 in H

MFG #: T2A533081S

EECO #: AET2A533081S

Brand: ACME Electric
UPC #: 047503733509
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121001
Application
For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and where painted cold roll steel is not adequate
Power Rating
3
Mounting Type
Wall
Enclosure Type
NEMA 3R
Connection Type
Wire Lead
Frequency Rating
60
Temperature Rating
115
Dimensions
7.47 in L x 12.37 in W x 10.38 in H
Primary Voltage
480D
Secondary Voltage
208Y/120
Features
  • Encapsulated core and coil
  • Completely enclosed suitable for indoor/outdoor service
  • Consult selection charts for details, excellent for dust or lint laden atmosphere
  • Encapsulated electrical grade silica and resin compound completely encloses the core and coil
  • High efficiency and excellent regulation
  • Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation
  • Wiring connections can be made outside of wiring compartment due to the use of flexible leads
  • Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation
  • Electrostatic shielding, energy-efficient
  • Steel enclosure
  • Air cooled/dry cooling
  • Delta primary, wye secondary configuration
  • Aluminum windings
  • Epoxy encapsulated
IDW_DOCUMENT_003fca30ce16fa38378ff5a4b74e025dd721ea28964e23b5b80e4404d7292c14
IDW_DOCUMENT_1b211118a746705d21f596250389035f70156b112fe6e90d4cf92af2b57f1802
IDW_DOCUMENT_858bf27fd1235e458fc6b1dc0c02ef8c2f87f37cd766401fc5ea7d53e2bb3d6f
Qty Unit price
Ea
1 $411.40
