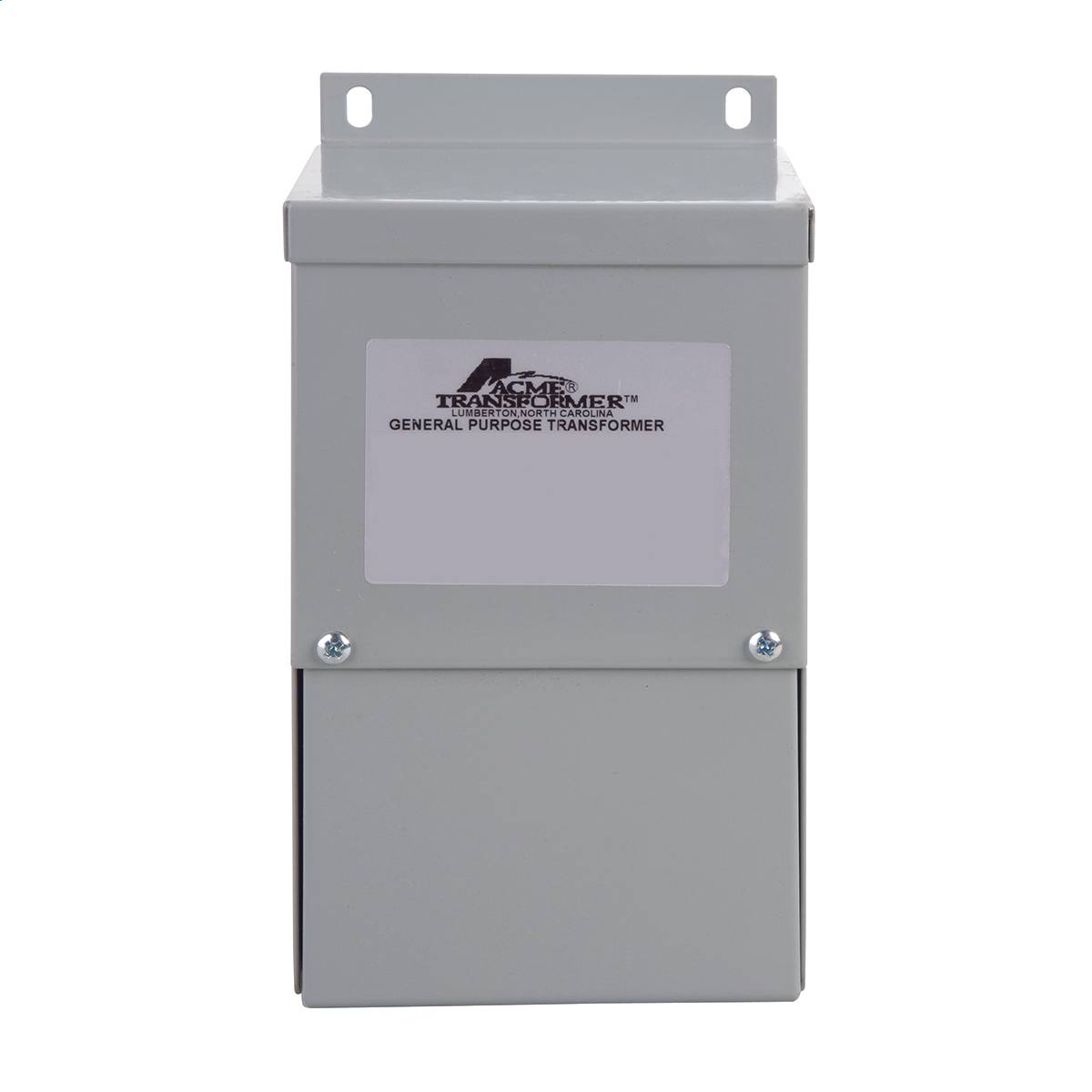

Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Share Share Print Print
Hubbell

Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

Short Description

Enhance your power solutions with the Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer. Designed for versatility and efficiency, this transformer features a 120/240 VAC primary and a 12/24 VDC secondary, delivering a reliable 0.5 kVA power rating. Perfect for wall mounting and built to withstand the elements with NEMA 3R rating.Enhanced by AI

Acme Electric® Buck Boost Transformer, Encapsulated Core and Coil Isolation, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA, 50/60 Hz, 1 ph, 4.16 A at 12 V/2.08 A at 24 V Output Maximum, Wire Lead/Screw, Wall Mount, Class B/130 deg C, NEMA 3R, 115 deg C, Steel Housing, 3.05 in L x 3.14 in W x 6.41 in H

MFG #: T181047

EECO #: AET181047

Brand: ACME Electric
UPC #: 047503085288
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121025
Application
For low voltage lighting or control circuitry
Power Rating
0.5
Mounting Type
Wall
Enclosure Type
NEMA 3R
Connection Type
Wire Lead/Screw
Frequency Rating
50/60
Housing Material
Steel
Temperature Rating
115
Warranty
Limited
Dimensions
3.05 in L x 3.14 in W x 6.41 in H
Primary Voltage
120/240
Secondary Voltage
12/24
Features
  • Easily configured for numerous applications
  • Lower cost solution
  • 5 to 10 times increase in kVA
Acme_Electric_T181047_Full_Engineering_Drawing
IDW_DOCUMENT_003fca30ce16fa38378ff5a4b74e025dd721ea28964e23b5b80e4404d7292c14
IDW_DOCUMENT_1518582640873
IDW_DOCUMENT_5ac901ba798e1291626db5f19b679b76017fd1dba5bc46fe2674ed7cac570a32
IDW_DOCUMENT_858bf27fd1235e458fc6b1dc0c02ef8c2f87f37cd766401fc5ea7d53e2bb3d6f
Qty Unit price
Ea
1 $63.27
