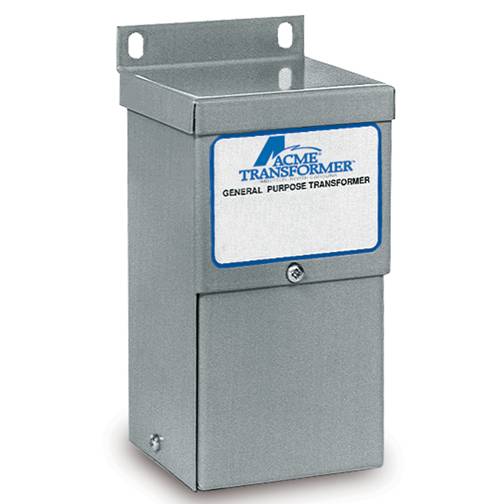

Acme Electric® T153005 Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA Power Rating, 50/60 Hz, 1 ph Phase

Short Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Acme Electric® Distribution Transformer, Air Colled/Dry, 240/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA, 50/60 Hz, 1 ph, 0.6/1.2/2.4 A Maximum, Wire Lead, Wall Mount, Class B/130 deg C, NEMA 3R, 115 deg C, 3.67 in L x 3.89 in W x 7.16 in H

MFG #: T153005

EECO #: AET153005

Brand: ACME Electric
UPC #: 047503085349
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121001
Application
Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities
Power Rating
0.1
Mounting Type
Wall
Enclosure Type
NEMA 3R
Connection Type
Wire Lead
Frequency Rating
50/60
Temperature Rating
115
Warranty
10 Years Limited
Dimensions
3.67 in L x 3.89 in W x 7.16 in H
Primary Voltage
240/480
Secondary Voltage
120/240
Features
  • Ground studs for use with non-metallic conduit
  • Quiet operation with sound levels well below NEMA standards
  • Electrostatic shield for enhanced protection
  • Encapsulated core and coil
  • Long life UL class 130 deg C insulation system, transformers can be banked for 3-phase service
  • Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool
  • Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction
  • Plenty of knockouts for multi-directional entry
  • All copper lead wire terminations
  • Air cooled/dry cooling
  • Four windings
  • Aluminum, two primary winding, two winding secondary
  • Easy and convenient installation to meet your requirements, the transformer can be mounted in any position
  • Plenty of knockouts for multi-directional entry, all copper lead wire terminations
  • 1.2 A for 240 VAC, 0.6 A for 480 VAC primary, 2.4 A for 120 VAC secondary
IDW_DOCUMENT_003fca30ce16fa38378ff5a4b74e025dd721ea28964e23b5b80e4404d7292c14
IDW_DOCUMENT_1480880952204
IDW_DOCUMENT_1518582640873
IDW_DOCUMENT_301639cdd812f23785f764aa95ae7c2ae6419783fdc77716fd3b223469dc5620
IDW_DOCUMENT_858bf27fd1235e458fc6b1dc0c02ef8c2f87f37cd766401fc5ea7d53e2bb3d6f
Qty Unit price
Ea
1 $50.10
