2 HP, 240/480/600 VAC, Hubbell Incorporated ALRB004TBC AC Line Reactor, 2.4/3/6 Percent Impedance

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

2 HP, 240/480/600 VAC, 60 Hz, 4 A, 2.4/3/6 Percent Impedance, 5513 mH, AC Line Reactor

AC Line Reactor; Voltage Rating 240/480/600 Volt AC at 60 Hertz; Power Rating 2 HP; Impedance 2.4 Percent at 600 Volt, 3 Percent at 480 Volt, 6 Percent at 240 Volt; Inductance 5513 Microhenry; Size 4.25 Inch Width x 3.125 Inch Depth x 3.875 Height; Used On AC Variable Frequency Drive/DC Motor Drive; Approval UL 506, CSA C22.2, CE; Current Rating 4 Amp; Mounting Size 1.44 Inch Width x 2 Inch Depth; Insulation Class 180; Temperature Rating 115 Deg C

MFG #: ALRB004TBC

EECO #: AEALRB004TBC

Brand: ACME Electric
UPC #: 047503086971
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121015
Used On
AC Variable Frequency Drive/DC Motor Drive
Approval
UL 506, CSA C22.2, CE
Impedance
2.4 Percent at 600 Volt, 3 Percent at 480 Volt, 6 Percent at 240 Volt
Power Rating
2 HP
Voltage Rating
240/480/600 Volt AC at 60 Hertz

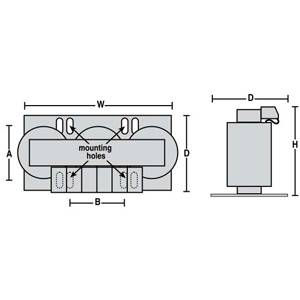

Size
4.25 Inch Width x 3.125 Inch Depth x 3.875 Height
Inductance
5513 Microhenry
Features
  • Gapped Iron Core Inductor Designed for Optimum Performance While Providing Harmonics Compensation
  • Precision Wound Copper Coils Maximum Protection from Short-Circuiting
  • Finger-Safe Terminal Blocks (Up to 60 HP)
  • Compact Design Allows for More Flexible Installation
  • Amperage Ratings of 2 to 600 Ampere
  • Protection from Damaging Voltage Drop
  • Elimination of Nuisance Tripping of Drives or Circuit
  • Reduction of Motor Current Surges and Power Line Spike Currents
  • Improvement in True Power Factor of Capacitor Input Drives
  • Cooler, Quieter Operation
  • Reduction of Harmonic Distortion
  • Longer Life for Motors and Solid State Components
ACMEPDE00630_63_65
ACMEPDE00637_1_2
Qty Unit price
Ea
1 $78.21

Slqt
1 $78.21

Stpk
1 $78.21

Unit
1 $78.21
