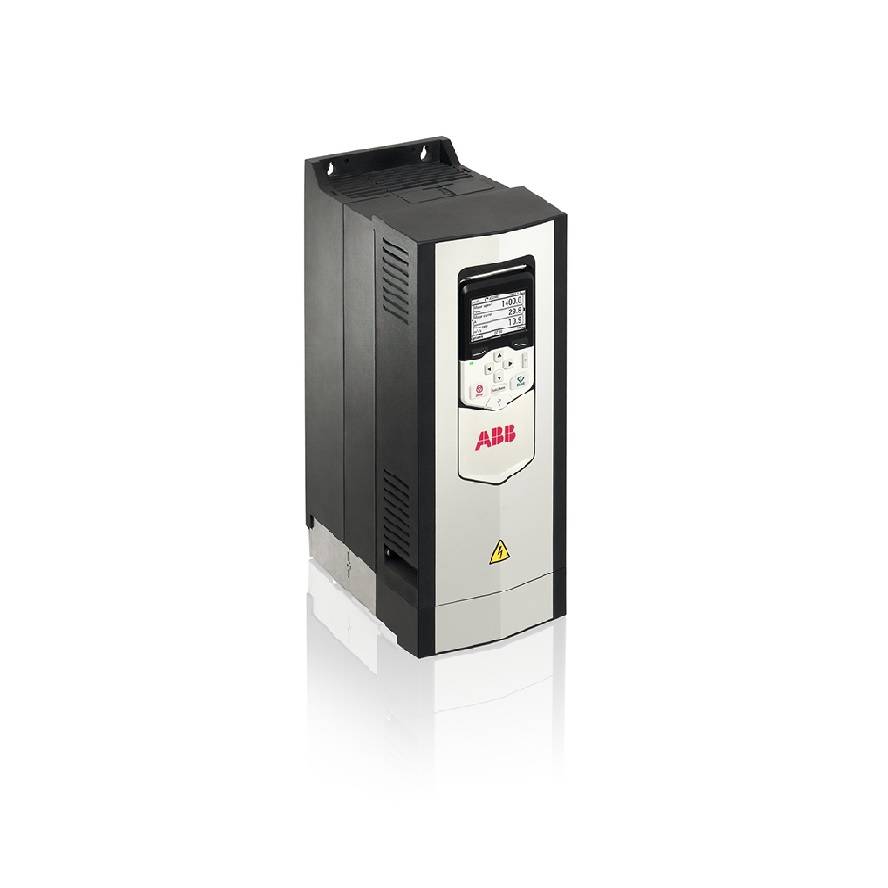

ABB ACS880-01-07A6-5 3-Phase Low Voltage Single Drive AC Drive, 380 to 500 VAC Input/480 VAC Output, 7.6 A, 3 hp, 5 hp, 6.1 in W x 8.9 in D
Share Share Print Print
ABB

ABB ACS880-01-07A6-5 3-Phase Low Voltage Single Drive AC Drive, 380 to 500 VAC Input/480 VAC Output, 7.6 A, 3 hp, 5 hp, 6.1 in W x 8.9 in D

Short Description

Built on ABB all compatible drives architecture you have unprecedented levels of compatibility, flexibility and ease-of-use. Compact wall mounted drives with all important features built-in the drive, saving installation space and time. Enjoy premium control of virtually any type of AC motor with direct torque control (DTC), including permanent magnet motors and synchronous reluctance motors. Flexibility is thanks to universal connectivity and a broad range of internal and external options.

ABB AC Drive, 3-Phase Low Voltage Single Drive, Series: ACS880, 380 to 500 VAC Input/480 VAC Output, 7.6 A, 3 hp, 5 hp, 6.1 in Width, 8.9 in Depth, 16 in Height, UL Type 1/IP21 Enclosure, Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad Display, Wall Mounting, Sheet Steel, Traffic Black, Hot Dipped Zinc
MFG #: ACS880-01-07A6-5

EECO #: ACS8800107A65

Brand: ABB
UPC #: 662348062555
Attributes
Features
Documents
Product Information
Attributes
Color
Traffic Black
Finish
Hot Dipped Zinc
UNSPSC
39122001
Material
Sheet Steel
Application
For industries such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills and marine, they are designed to control a wide range of applications including cranes, extruders, winches, winders, conveyors, mixers, compressors, pumps and fans
Display Type
Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad
Mounting Type
Wall
Enclosure Type
UL Type 1/IP21
Voltage Rating
380 to 500 VAC Input/480 VAC Output
Type
3-Phase Low Voltage Single Drive
Depth
8.9
Width
6.1
Height
16
Series
ACS880
Horsepower
3 hp, 5 hp
Amperage Rating
7.6
Features
  • Compact design for easy installation, commissioning and maintenance
  • Integrated safety including safe torque off (STO) as standard and the optional safety functions module (TUV Nord certificate)
  • Supports various motor types including synchronous reluctance motors
  • Intuitive control panel with USB connection
  • Removable memory unit for easy maintenance
  • Drive composer PC tool for commissioning and configuration
  • Primary control program - common software used throughout the ACS580 drive series
  • Control unit supporting a wide range of fieldbuses, feedback devices and input/output options
  • Coated boards as standard
  • Controllable cooling fan
  • Incoming air temperature measurement for protecting the drive from different temperature related failure mechanisms
  • Built-in choke
  • Built-in braking chopper
  • 5 hp light duty, 3 hp heavy duty horsepower rating
