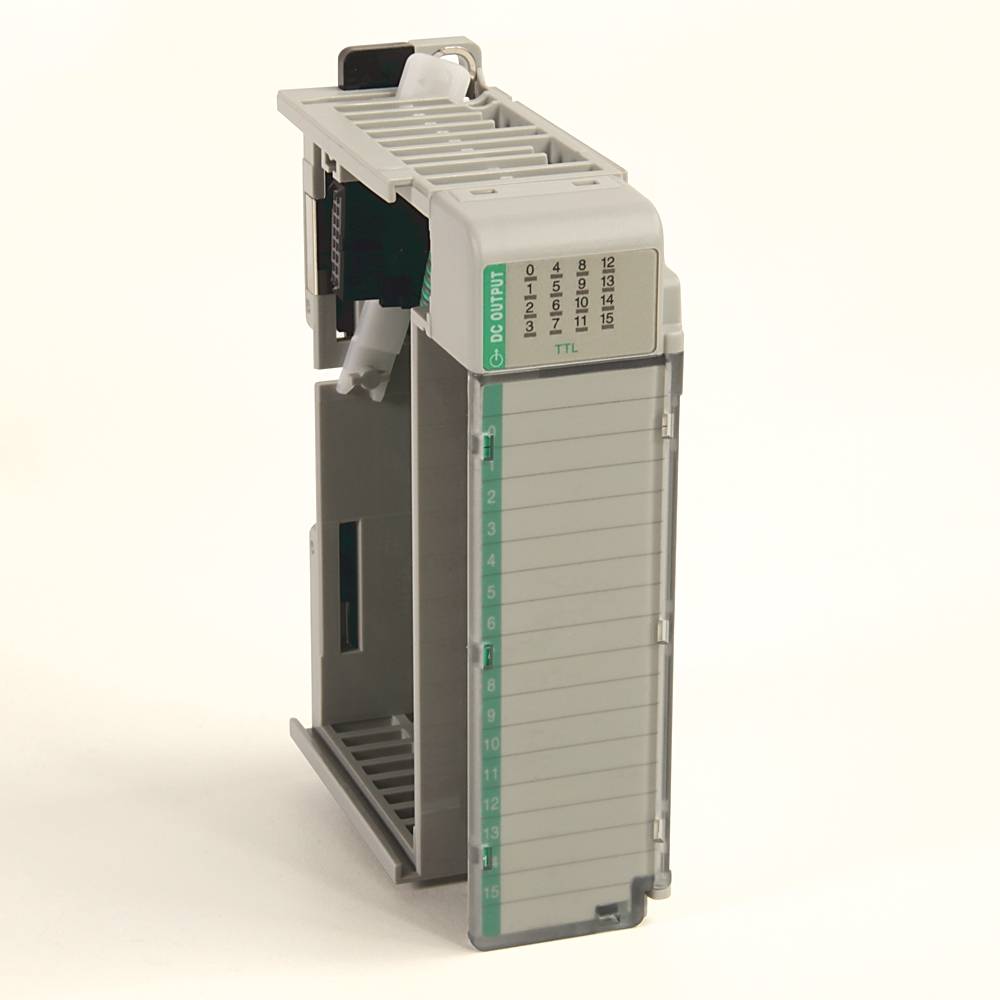

Allen-Bradley CompactLogix 16 Pt 5V TTL D/O Module
Share Share Print Print
Rockwell Automation

Allen-Bradley CompactLogix 16 Pt 5V TTL D/O Module

NOTICE: This item has a mature status as a newer item has been introduced by the manufacturer. Limited stock may be available. Contact your EECO account representative for alternative options.
Short Description

Enhance your automation projects with the Allen-Bradley CompactLogix 16 Pt 5V TTL D/O Module, featuring 16 points of reliable 5 VDC TTL output for seamless control and efficiency. Enhanced by AI

16 Point 5 VDC TTL Output Module

MFG #: 1769-OG16

EECO #: AB1769OG16

Brand: Allen-Bradley
UPC #: 662074455317
Mature
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Display
Status LEDs
Sub Brand
CompactLogix
Mounting
DIN Rail / Panel Mount
Replacement Door
1769-RD (2 per kit)
Special Features
TTL Output
Enclosure
None (open style)
Number of Channels
16
Operating Temperature
0...60 °C (32...140 °F)
Replacement Door Label
1769-RL1 (2 per kit)
Removable Terminal Block
1769-RTBN18 (1 per kit)
Type
Digital Output
Depth
87mm, 3.43"
Width
35mm, 1.38"
Height
118mm, 4.65"
Isolation
1200V AC for 2 s or 1697V DC for 2 s, output point to bus, 75V DC working voltage (IEC Class 2 reinforced insulation)
Output Signal
4.5...5.5V DC, 50 mV peak-to-peak ripple max
Features
  • Type: Automation Input/Output Module
  • Output Points: 16
  • Output Voltage: 5 VDC TTL
  • Compatibility: Suitable for CompactLogix systems

Enhanced by AI

1769_td006__en_p
Qty Unit price
Ea
1 $514.29

Slqt
1 $514.29

Stpk
1 $514.29

Unit
1 $514.29
