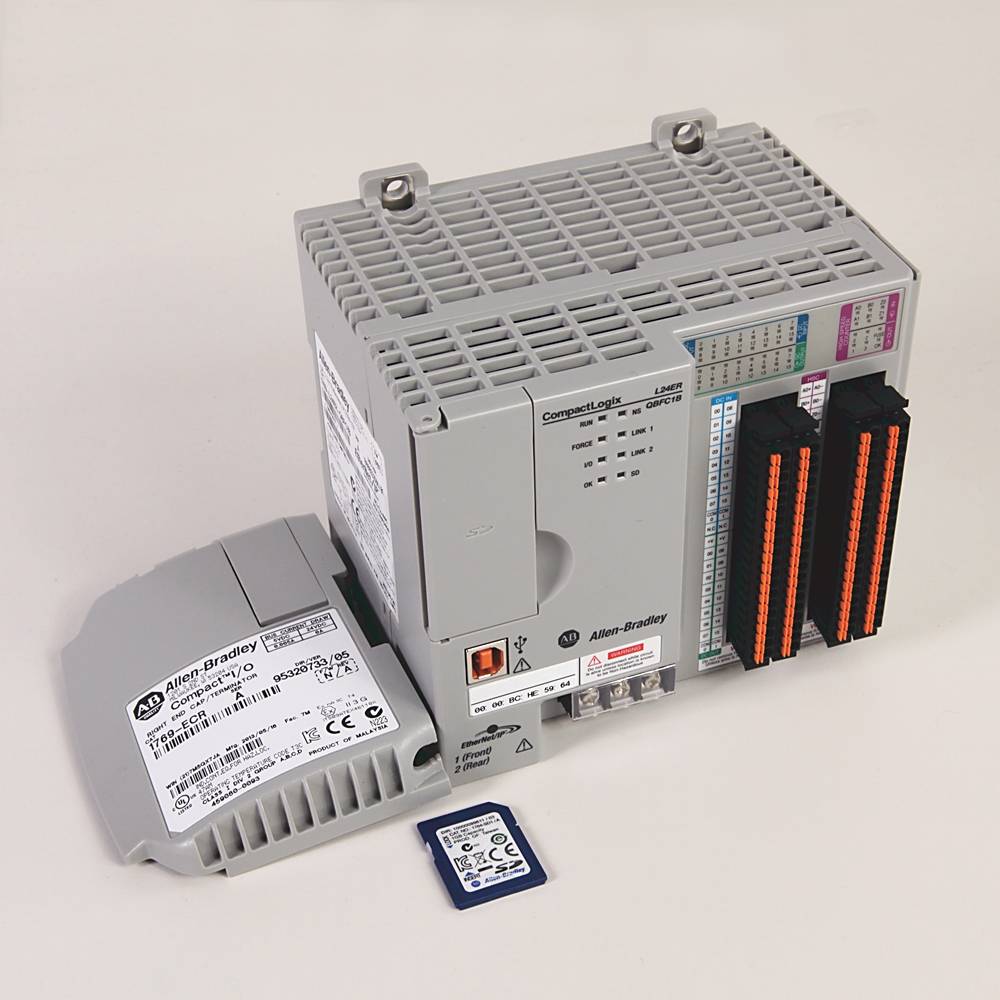

Allen-Bradley CompactLogix 750KB DI/O AI/O Controller
Share Share Print Print
Rockwell Automation

Allen-Bradley CompactLogix 750KB DI/O AI/O Controller

NOTICE: This item has a mature status as a newer item has been introduced by the manufacturer. Limited stock may be available. Contact your EECO account representative for alternative options.
Short Description

Elevate your automation projects with the Allen-Bradley CompactLogix 750KB DI/O AI/O Controller, featuring robust memory, versatile I/O capabilities, and dual EtherNet/IP ports for seamless connectivity. Enhanced by AI

CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 12

MFG #: 1769-L24ER-QBFC1B

EECO #: AB1769L24ERQBFC1B

Brand: Allen-Bradley
UPC #: 885630101255
Mature
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Display
Status LEDs
Sub Brand
CompactLogix
Power Supply
24V DC input, Isolated,Class 2/SELV
Communication
Ethernet , USB
Mounting
DIN Rail / Panel Mount
Special Features
Universal Analog Input
Enclosure
None (open style)
Number of Channels
42
Embedded Network Port
2 Ethernet
Operating Temperature
0...60 °C (32...140 °F)
Local Programming Port
USB/Ethernet
Non Volatile Memory Option
Secure Digital
Type
Standard Controller
Depth
105mm, 4.13"
Width
140mm, 5.51"
Height
118mm, 4.65"
Memory
0.5MB
Isolation
30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
Input Signal
10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance
Output Signal
24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA
Motion Axis Supported
4
Features
  • Model: CompactLogix 5370 L2 Controller
  • Memory: 750KB
  • DC Inputs: 16
  • DC Outputs: 16
  • Universal Analog Inputs: 4
  • Analog Outputs: 2
  • High-Speed Counters: 4
  • Expansion Capability: Supports up to 4 1769 I/O Expansion Modules
  • EtherNet/IP Ports: 2, with Device Level Ring Capability
  • Product Type: Automation Programmable Controllers

Enhanced by AI

1769_td005__en_p
Qty Unit price
Ea
1 $3,665.18

Slqt
1 $3,665.18

Stpk
1 $3,665.18

Unit
1 $3,665.18
