Allen-Bradley CompactLogix L16 384KB Ctlr
Share Share Print Print
Rockwell Automation

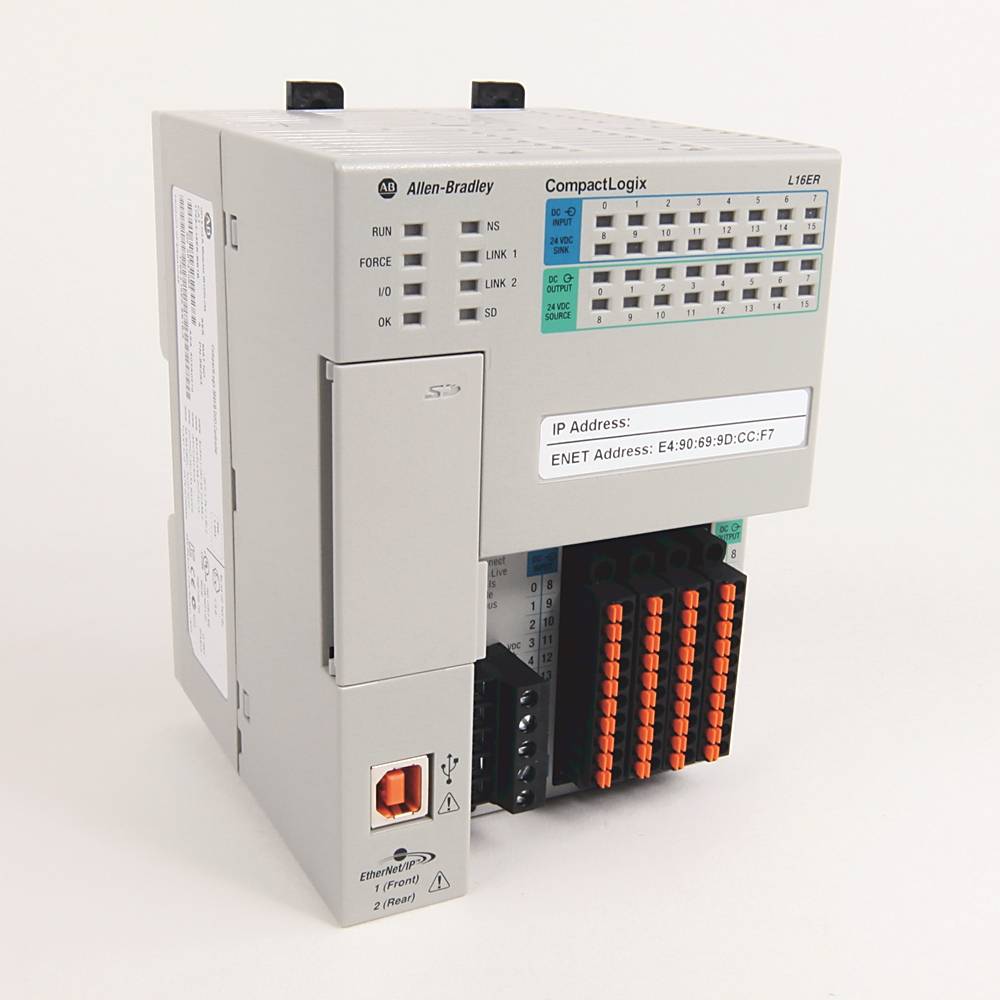

Allen-Bradley CompactLogix L16 384KB Ctlr

Short Description

Enhance your automation capabilities with the Allen-Bradley CompactLogix L16 384KB Controller, featuring dual Ethernet with DLR capability and extensive I/O expansion options for seamless integration and performance. Enhanced by AI

CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 384KB Memory, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to

MFG #: 1769-L16ER-BB1B

EECO #: AB1769L16ERBB1B

Brand: Allen-Bradley
UPC #: 612598968640
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Display
Status LEDs
Sub Brand
CompactLogix
Power Supply
24V DC input, non-isolated, Class 2
Communication
Ethernet , USB
Mounting
DIN Rail / Panel Mount
Special Features
Standard
Enclosure
None (open style)
Number of Channels
32
Embedded Network Port
2 Ethernet
Operating Temperature
-20...60 °C (-4...140 °F)
Local Programming Port
USB/Ethernet
Non Volatile Memory Option
Secure Digital
Type
Standard Controller
Depth
105mm, 4.13"
Width
100mm, 3.94"
Height
131.6mm, 5.18"
Memory
0.375MB
Isolation
50V (continuous), Basic Insulation Type, Tested at 500V AC for 60 s, System to Field
Input Signal
10-30 VDC
Output Signal
10-30 VDC
Features
  • Model: Allen-Bradley CompactLogix L16
  • Type: Automation Programmable Controller
  • Memory: 384KB
  • Connectivity: Dual Ethernet with DLR (Device Level Ring) capability
  • I/O Expansion: Supports up to 6 I/O via 1734 POINT I/O
  • Ethernet IP Nodes: Supports up to 4 nodes
  • Power Supply: 24VDC
  • Included Storage: Ships with 1GB SD card
  • Backplane: Uses POINT I/O (1734) backplane

Enhanced by AI

1769_td005__en_p
Qty Unit price
Ea
1 $2,014.25

Slqt
1 $2,014.25

Stpk
1 $2,014.25

Unit
1 $2,014.25
