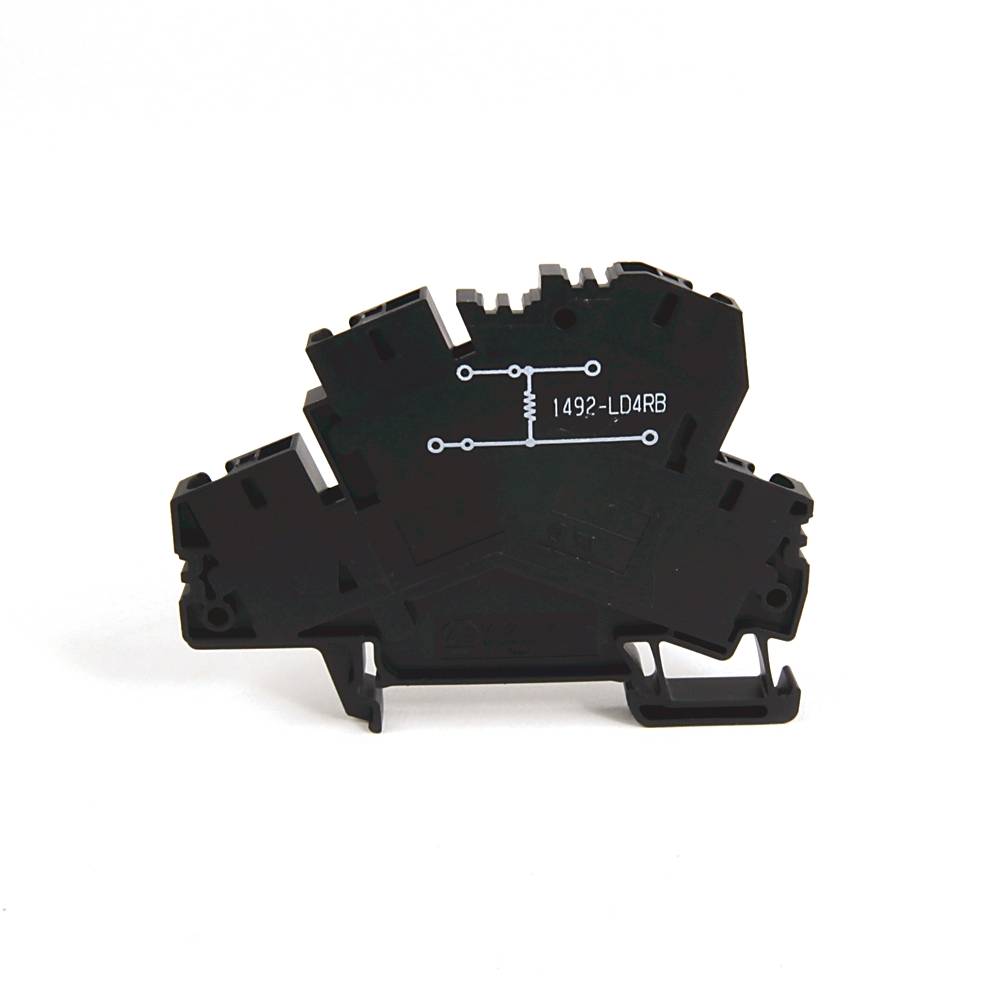

Allen-Bradley Terminal Block, Resistor, 20.0K Ohms
Share Share Print Print
Rockwell Automation

Allen-Bradley Terminal Block, Resistor, 20.0K Ohms

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Enhance your industrial applications with the Allen-Bradley Terminal Block featuring a 20.0K Ohm resistor. This versatile two-circuit feed-through block is designed for reliable performance, accommodating various wire gauges with ease. Enhanced by AI

Spring Clamp Terminal Block,Two-Circuit Feed-Through Block,4 mm (# 22 AWG - # 10 AWG) or 2.5 mm (# 22 AWG - # 12 AWG),Two level block with a selectable metal oxide film resistor value between the 2 levels,Black (Standard),20k Ohm Resistance

MFG #: 1492-LD4RB203

EECO #: AB1492LD4RB203

Brand: Allen-Bradley
UPC #: 781180144141
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black (Standard)
UNSPSC
39121410
Base Block Type
Two-Circuit Feed-Through Block
Base Block Style
Internal Component Blocks
Special Features
Two level block with a selectable metal oxide film resistor value between the 2 levels
Wire Range
UL: 26-10 AWG (25A @600V AC/DC) CSA: 26-10 AWG (30A @600V AC/DC) IEC: 4mm² (32A @152V AC/DC)
Resistor Value
20k Ohm Resistance
Maximum Wire Size & Rating
UL: 26-10 AWG (33A @600V AC/DC) CSA: 26-10 AWG (35A @600V AC/DC) IEC: 4mm² (32A @800V AC/DC) EEx e II: 4mm²/20-10 AWG (28A @550V AC/DC)
Features
  • Type: Industrial Terminal Block
  • Design: Spring Clamp Terminal Block
  • Circuit Configuration: Two-Circuit Feed-Through Block
  • Wire Gauge Compatibility: Supports 4 mm (#22 AWG - #10 AWG) or 2.5 mm (#22 AWG - #12 AWG)
  • Block Level: Two-level block with selectable resistor value
  • Resistor Type: Metal oxide film resistor
  • Resistance Value: 20.0K Ohms
  • Color: Black (Standard)

Enhanced by AI
