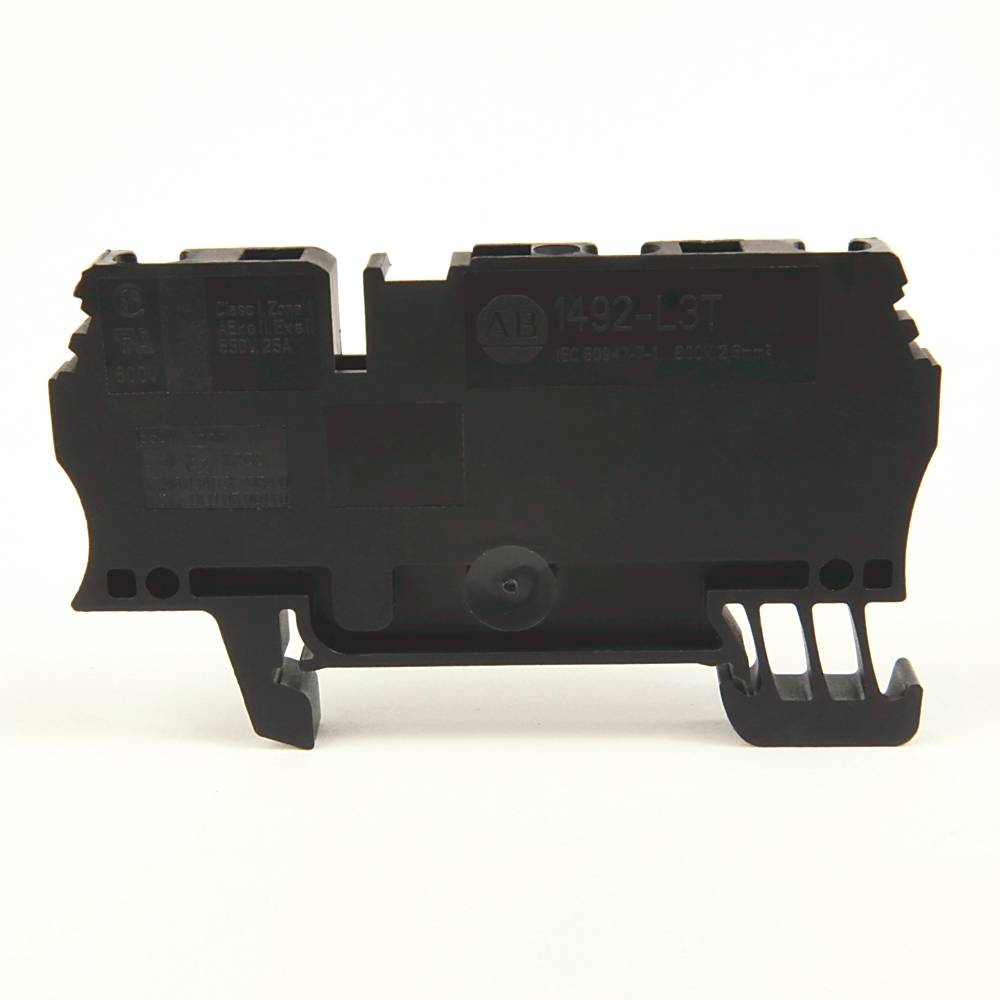

Allen-Bradley IEC Term Blck 5.1x64.5x31.3mm Spr Clp
Share Share Print Print
Rockwell Automation

Allen-Bradley IEC Term Blck 5.1x64.5x31.3mm Spr Clp

Short Description

Discover the reliability and efficiency of the Allen-Bradley IEC Terminal Block, designed for seamless connections and superior performance in your industrial applications. Enhanced by AI

Spring Clamp Terminal Block,One-Circuit Feed-Through Block,2.5mm² (# 30 AWG - # 12 AWG),2 Connection points on one side,Brown,

MFG #: 1492-L3T-BR

EECO #: AB1492L3TBR

Brand: Allen-Bradley
UPC #: 662073054870
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121410
Base Block Type
One-Circuit Feed Through Block
Base Block Style
Standard Feed-Through Blocks
Special Features
2 Connection points on one side
Wire Range
UL: 30-12 AWG (25A @600V AC/DC) CSA: 26-12 AWG (27A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm²/20-12 AWG (21A @550V AC/DC)
Maximum Wire Size & Rating
UL: 16-6 AWG (60A @600V AC/DC) CSA: 16-6 AWG (55A @600V AC/DC) IEC: 10mm² (57A @800V AC/DC) EEx e II: 10mm²/16-8 AWG (50A @550V AC/DC)
Features
  • Type: Spring Clamp Terminal Block
  • Dimensions: 5.1 x 64.5 x 31.3 mm
  • Circuit Configuration: One-Circuit Feed-Through Block
  • Wire Size Compatibility: 2.5 mm² (#30 AWG - #12 AWG)
  • Connection Points: 2 connection points on one side
  • Color: Brown
