Allen-Bradley Process Block with Disconnect and PE
Share Share Print Print
Rockwell Automation

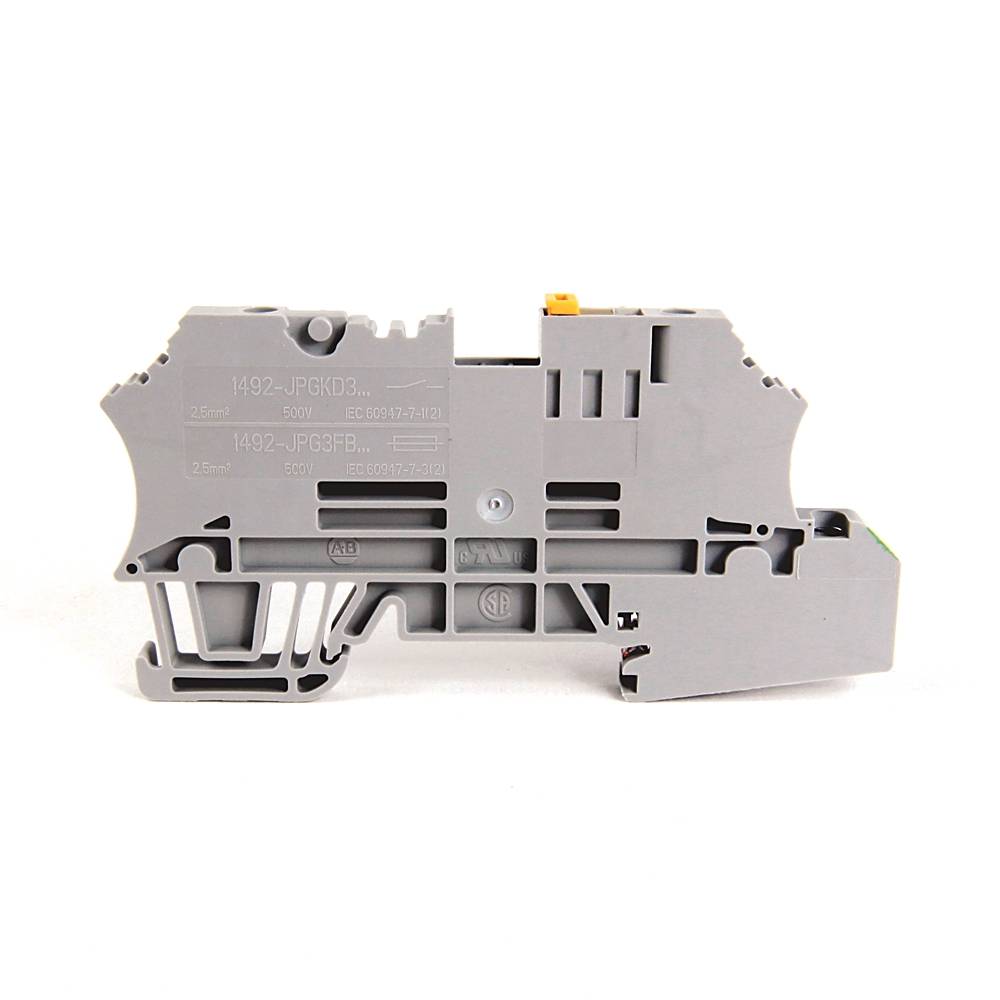

Allen-Bradley Process Block with Disconnect and PE

Short Description

Enhance your electrical connections with the Allen-Bradley Process Block featuring a reliable disconnect and protective earth. Designed for efficiency, this compact terminal block ensures secure screw connections and easy testing, making it an ideal choice for your projects. Enhanced by AI

Terminal Block, Screw Connection, Single Circuit Feed Through Knife Disconnect with Test Screws and Ground Connection, 5.1 x 88 x 44.5mm (0.20 x 3.46 x 1.75 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 500V

MFG #: 1492-JPGKD3TP

EECO #: AB1492JPGKD3TP

Brand: Allen-Bradley
UPC #: 884951948273
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121410
Standard
CUL
Sub Brand
1492
Wire Size
UR - #26...12 AWG, CSA - #26...12 AWG, IEC - 2.5 mm²
Voltage Rating
300/500//300/500
Special Features
Screw Connection,Single-Circuit Feed Through Knife Disconnect Test Screws,Ground Connection,1 Pole,Gray,Pkg. Qty. of 50
Type
IEC Screw Process Terminal Block
Terminal Size
5.1 x 88 x 44.5mm (0.20 x 3.46 x 1.75 in)
Amperage Rating
19/20
Features
  • Type: Terminal Block with Disconnect and PE
  • Connection: Screw Connection
  • Design: Single Circuit Feed Through Knife Disconnect
  • Features: Test Screws and Ground Connection
  • Dimensions: 5.1 x 88 x 44.5 mm (0.20 x 3.46 x 1.75 in)
  • Poles: 1 Pole
  • Color: Gray
  • Packaging: Packaged in quantities of 50
  • Voltage Rating: UR 300V AC/DC, CSA 300V AC/DC, IEC 500V

Enhanced by AI
