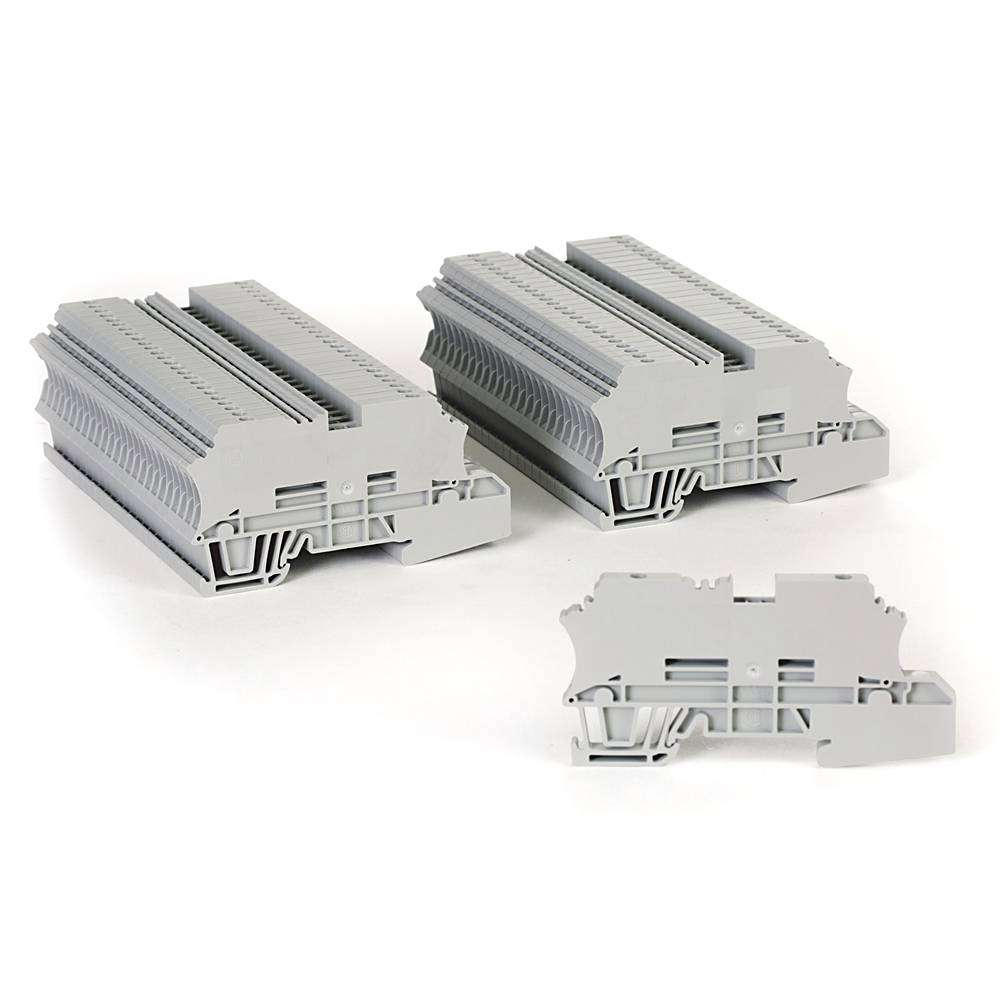

Allen-Bradley Feed-Through Process Terminal Block
Share Share Print Print
Rockwell Automation

Allen-Bradley Feed-Through Process Terminal Block

Short Description

Enhance your electrical connections with the Allen-Bradley Feed-Through Process Terminal Block, designed for reliability and efficiency. This compact, single circuit terminal block features a robust screw connection and is perfect for various applications, ensuring optimal performance with a voltage rating of up to 600V AC/DC. Enhanced by AI

Terminal Block, Screw Connection, Feed Through Single Circuit Process, 5.1 x 88 x 44.5mm (0.20 x 3.46 x 1.75 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IEC 800V AC/DC, MAXIMUM CURRENT RATING UR 20A, CSA 2

MFG #: 1492-JP3

EECO #: AB1492JP3

Brand: Allen-Bradley
UPC #: 884951948297
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121410
Standard
CSA,CUL,UL
Sub Brand
1492
Wire Size
UR - #26...12 AWG, CSA - #26...12 AWG, IEC - 2.5 mm²
Voltage Rating
600/800//600/800
Special Features
Screw Connection, Feed Through Single Circuit Process, 1 Pole, Gray, Pkg. Qty. of 50
Type
IEC Screw Process Terminal Block
Terminal Size
5.1 x 88 x 44.5mm (0.20 x 3.46 x 1.75 in)
Amperage Rating
20/24/26
Features
  • Type: Feed-Through Process Terminal Block
  • Connection Method: Screw Connection
  • Configuration: Single Circuit, 1 Pole
  • Dimensions: 5.1 x 88 x 44.5 mm (0.20 x 3.46 x 1.75 in)
  • Color: Gray
  • Package Quantity: 50 units
  • Voltage Rating: 600V AC/DC (UR), 600V AC/DC (CSA), 800V AC/DC (IEC)
  • Maximum Current Rating: 20A (UR), 2A (CSA)

Enhanced by AI
